32" 4K PCAP Touchscreen Monitor

I32ZI – 32″ 4K PCAP Touchscreen Monitor

Part Number: I32ZI-OQ Series
Category: Large Format Touch Monitors

This innovative design, comprised of 4k 32″ displays and above, are creating opportunities in digital signage, corporate webinars and infotainment.

32 Inch, 4K UHD 3840 x 2160 Resolution
10-Point Projected Capacitive PCAP Touchscreen
Zero Pressure Touch Activation
Full Optical Bonding
Anti-Reflection Coating* (I32ZI-OQ-45PGC Only)

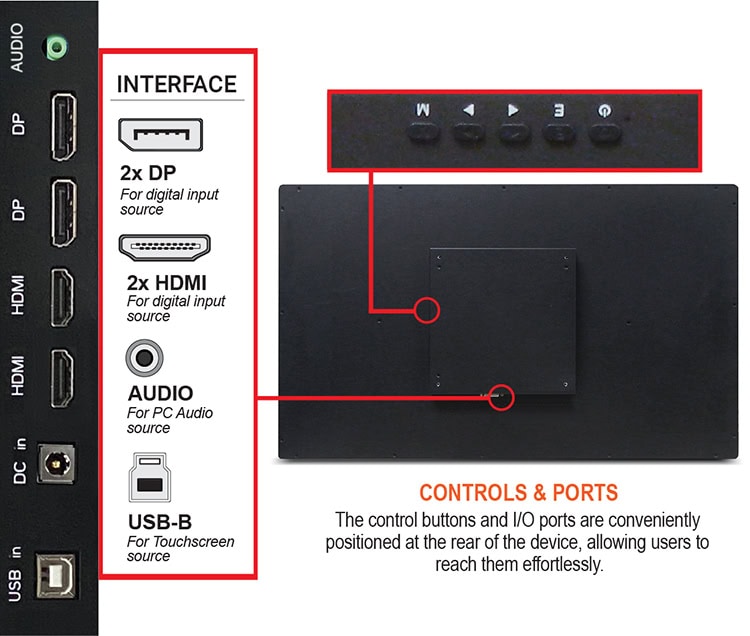

Interface: HDMI x2, DisplayPort (DP) x2 Inputs
Landscape or Portrait Orientation Supported
TAA-Compliant (I32ZI-OQ-45PS, I32ZI-OQ-45PT Only)

MODEL
Part Number	I32ZI-OQ-45P0	I32ZI-OQ-45PG	I32ZI-OQ-45PGC*	I32ZI-OQ-45PS	I32ZI-OQ-45PT
DISPLAY
Screen Size	32"
Resolution	3840 x 2160
Active Area	698.40 (H) x 392.85 (V)
Pixel Pitch	0.181 (H) x 0.181 (V)
Response Time	9.5ms
Brightness	350cd/m²
Aspect Ratio	16 : 9
Contrast Ratio	3000 : 1
Color Depth	1.07G
Brightness	LED
AUDIO
Speakers	Option
INTERFACE
HDMI	2
Display Port	2
Audio	1
USB Type-B	1
TOUCH TECHNOLOGY
Type	PCAP Projected Capacitive
Point	10-Point
Surface Hardness	Mohs' 7H
Interface	USB (B-Type)
FEATURES
Optical Bonding	Yes / Full Optical Bonding
AR Coating*	N/A	N/A	Yes	N/A	N/A
CABINET
Material	Metal
Color	Black
POWER
Consumption	TBD
Input Voltage	AC 100V ~ 240V, 50/60Hz
TEMPERATURE
Operating	32° F ~ 104° F (0° C ~ 40° C)
Storage	14° F ~ 140° F (-10° C ~ 60° C)
HUMIDITY
Operating	20% ~ 80%
Storage	10% ~ 90%

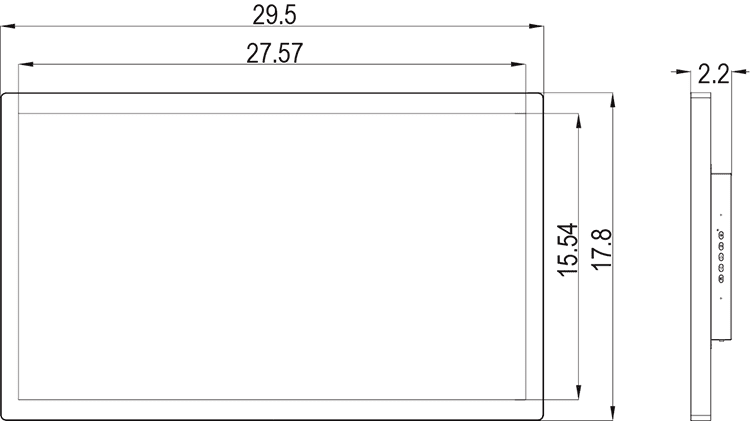

DIMENSIONS (WxHxD)
Inch (in)	29.5 x 17.8 x 2.2
Millimeter (mm)	750.4 x 452.7 x 56.5
WEIGHT
Net Weight	30.8 lbs (14 kg)
VESA™
Mount Holes (mm)	200 x 200
COMPLIANT
TAA Compliant	N/A	N/A	N/A	Yes	Yes
SILK PRINT
Logo	N/A	Yes	Yes	N/A	Yes

product description

Technological advances and price decreases have increased the market for large 4k touchscreen displays substantially. These innovative designs, comprised of 4k 32” displays and above, are creating opportunities in digital signage, corporate webinars, and infotainment. Feel free to inquire about our large touchscreen LCDs or engage us with your latest solution project and let our engineers position you for something big.
