D15ZX-AV-45P0 – 15″ Desktop Projected Capacitive PCAP Touchscreen Monitor

Part Number: D15ZX-AV-45P0
Category: Desktop Touchscreen Monitors
GVision desktop touchscreen monitor display 15-inch touchscreen monitor and performs 10-points multi-touch of projected capacitive PCAP screen.
  • 15-Inch Screen Size
  • 1024 x 768 Resolution
  • Video Inputs: HDMI / VGA / DVI
  • Zero Bezel Touchscreen
  • Projected Capacitive (PCAP) 10-Points Touch
  • Zero Pressure Touch Activation
  • IP65 on the Front (Option)
  • LED Backlight Unit Monitor
  • 3-Year Warranty
MODEL
Part Number D15ZX-AV-45P0
DISPLAY
Screen Size 15 In
Resolution 1024 x 768
Backlight Unit LED
Aspect Ratio 4 : 3
Viewing Angle 160° / 130°
Response Time 8ms
Brightness 300cd/m²
Contrast Ratio 700 : 1
Display Area 304.1 (H) x 228.1 (V)
Color 16.7 M
AUDIO
Speaker Option
INTERFACE
HDMI 1
DVI 1
VGA (15-Pin) 1
USB-B Type 1
TOUCH TECHNOLOGY
Type Projected Capacitive PCAP
Points 10-Points
Interface USB-B type
CABINET
Material Plastic Frame / Metal Housing
Color Black
POWER
Consumption 16W
Input Voltage 12V DC/5% (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating 32° F ~ 104° F (0° C ~ 40° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
HUMIDITY
Operating 10% ~ 80%
DIMENSIONS (WxHxD)
Inch (in) 14.3 x 13.7 x 8.7
Millimeter (mm) 362.4 x 348.4 x 220.0
WEIGHT
Net Weight 11 lbs (5.2 kg)
REGULATION
Certification CE / FCC
VESA™
Mount Holes (mm) 100 x 100
product description
GVision desktop touchscreen monitor of D15ZX is the point of sale (POS) touch monitor which display 15-inch touchscreen to performs 10-points multi touch technology of projected capacitive PCAP screen.
15inch Desktop Touchscreen Monitor



download data sheet

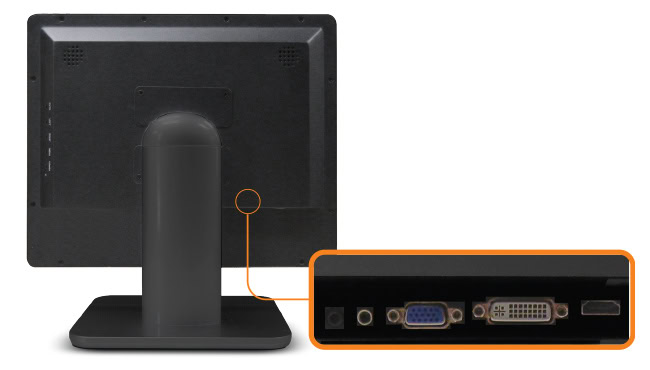

input interface
10-inch Desktop Touchscreen Input Source
Multi Inputs
D15ZX desktop touchscreen monitor support HDMI, VGA, DVI input and USB-Type B to use for the touch function



product dimensions
15-inch Desktop Touchscreen Dimensions
