19" Desktop PCAP Touchscreen Monitor

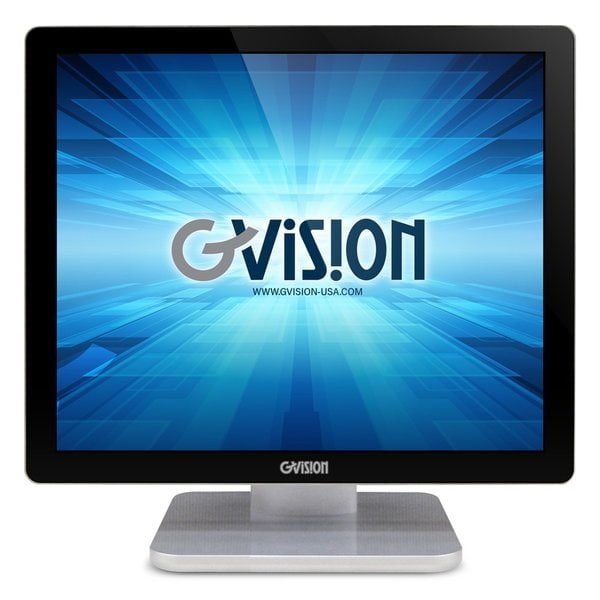

D19ZH – 19″ Desktop PCAP Touchscreen Monitor

Part Number: D19ZH-AV-K5P0
Category: Desktop Touchscreen Monitors

GVision desktop touchscreen display 19-inch touchscreen monitor and perform 10-points multi-touch of projected capacitive PCAP screen.

19-Inch Screen Size
1280 x 1024 Resolution
Video Inputs: HDMI / VGA / DVI
Projected Capacitive (PCAP) 10-Points Touch
Zero Pressure Touch Activation
IP65 on the Front (Option)
LED Backlight Unit Monitor
3-Year Warranty

MODEL
Part Number	D19ZH-AV-K5P0
DISPLAY
Screen Size	19 In
Resolution	1280 x 1024
Backlight Unit	LED
Aspect Ratio	5 : 4
Viewing Angle	170° / 160°
Response Time	5ms
Brightness	250cd/m²
Contrast Ratio	1000 : 1
Display Area	376.32 (H) x 301.06 (V)
Color	16.7 M
AUDIO
Speaker	Option
INTERFACE
HDMI	1
DVI	1
VGA (15-Pin)	1
USB Type-B	1
TOUCH TECHNOLOGY
Type	Projected Capacitive PCAP
Panel	10-Point PCAP
Interface	USB Type-B
CABINET
Material	Plastic Frame / Metal Housing
Color	Silver Frame / Black Housing
POWER
Consumption	20W
Input Voltage	12V DC/5% (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating	32° F ~ 104° F (0° C ~ 40° C)
Storage	-4° F ~ 140° F (-20° C ~ 60° C)
HUMIDITY
Operating	10% ~ 80%
DIMENSIONS (WxHxD)
Inch (in)	16.7 x 15.7 x 8.6
Millimeter (mm)	425.9 x 399.2 x 220.0
WEIGHT
Net Weight	15.8 lbs (7.2 kg)
REGULATION
Certification	CE / FCC
VESA™
Mount Holes (mm)	100 x 100

product description

GVision desktop touchscreen monitor of D19ZH is the point of sale (POS) touch monitor which display 19-inch touchscreen to perform 10-points multi touch technology of projected capacitive PCAP screen.
