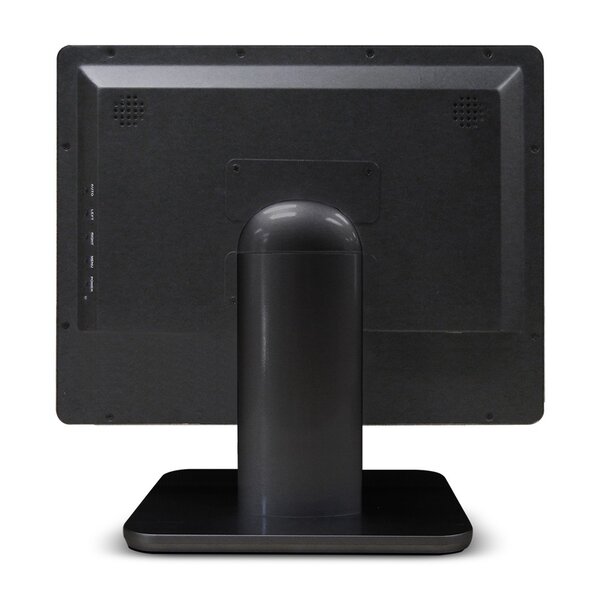

D17ZH – 17″ Desktop PCAP Touchscreen Monitor

Part Number: D17ZH-AV-45P0
Category: Desktop Touchscreen Monitors
GVision desktop touchscreen displays a 17-inch touchscreen monitor and performs 10-point multi-touch of the projected capacitive PCAP screen.
  • 17-Inch Screen Size
  • 1280 x 1024 Resolution
  • Video Inputs: HDMI / VGA / DVI
  • Zero Bezel Touchscreen
  • Projected Capacitive (PCAP) 10-Points Touch
  • Zero Pressure Touch Activation
  • IP65 on the Front (Option)
  • LED Backlight Unit Monitor
  • 3-Year Warranty
MODEL
Part Number D17ZH-AV-45P0
DISPLAY
Screen Size 17 In
Resolution 1280 x 1024
Backlight Unit LED
Aspect Ratio 5 : 4
Viewing Angle 170° / 160°
Response Time 5ms
Brightness 250cd/m²
Contrast Ratio 1000 : 1
Display Area 337.9 (H) x 270.3 (V)
Color 16.7 M
AUDIO
Speaker Option
INTERFACE
HDMI 1
DVI 1
VGA (15-Pin) 1
USB Type-B 1
TOUCH TECHNOLOGY
Type Projected Capacitive PCAP
Panel 10-Point PCAP
Interface USB Type-B
POWER
Consumption 18W
Input Voltage 12V DC/5% (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating 32° F ~ 104° F (0° C ~ 40° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
HUMIDITY
Operating 10% ~ 80%
DIMENSIONS (WxHxD)
Inch (in) 15.1 x 14.8 x 8.7
Millimeter (mm) 384.2 x 378.0 x 220.0
WEIGHT
Net Weight 13.6 lbs (6.2kg)
REGULATION
Certification CE / FCC
VESA™
Mount Holes (mm) 100 x 100
product description
GVision desktop touchscreen monitor of D17ZH is a point-of-sale (POS) touch monitor which displays 17-inch touchscreen to performs 10-points multi touch technology of projected capacitive PCAP screen.
17-inch Desktop Touchscreen Monitor



download data sheet



input interface
10-inch Desktop Touchscreen Input Source
Multi Inputs
D17ZH desktop touchscreen monitor support HDMI, VGA, DVI input and USB-Type B to use for the touch function



product dimensions
17-inch Desktop Touchscreen Dimensions
