24" security CCTV monitor

C24BD – 24″ 1080p Security CCTV Monitor

Part Number: C24BD-AU-400G
Category: Security CCTV Monitors

GVision 24″ 1080p security CCTV monitor supports HDMI, BNC inputs, and outputs of AHD/TVI/CVI of HD analog. It also Supports 5MP TVI / 4MP CVI / 5MP AHD.

24-Inch Screen Size
1920 x 1080 Full HD Resolution
Video Inputs: HDMI / 2x HD Analogue In / 2x HD Analogue Out
TVI / CVI / AHD / CVBS Auto Recognization
Supports 5MP TVI, 4MP CVI / 5MP AHD Input
Auto Adjustment
178° /178° Wide View Angle
Built to operate 24/7 Commercial CCTV Monitor
3-Year Warranty

MODEL
Part Number		C24BD-AU-400G
DISPLAY
Screen Size		24"
Resolution		1920 x 1080
Backlight Unit		LED
Aspect Ratio		16 : 9
Viewing Angle		178° / 178°
Brightness		250 Nit
Color		16.7 Million
Contrast Ratio		1000 : 1
Response Time		5ms
INTERFACE
BNC In		2x HD Analogue (TVI/AHD/CVI)
BNC Out		2x HD Analogue (TVI/AHD/CVI)
HDMI In		1
HD Analogue	TVI	720P@25/30fps, 1080P@25/30fps, 2560x1440@25/30fps, 5MP@20fps, 4MP@25fps, 3MP@18.75fps
	CVI	720P@25/30/50/60fps, 1080P@25/30fps, 2560X1440@25/30fps, 4PM@25fps
	AHD	720P@25/30fps, 1080P@25/30fps, 2560x1440@25/30fps, 5MP@20fps, 4MP@25fps
FEATURES
OSD Language		English, Spanish, Italian, German, French, Polish, Russian, Dutch, Danish
Auto Adjustment		Yes
OSD Control		Yes
CABINET
Color		Black
POWER
Consumption		< 25W
Electrical Ratings		12V DC / 5A (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating		32° F ~ 104° F (0° C ~ 40° C)
Storage		14° F ~ 140° F (-10° C ~ 60° C)
Humidity		10 ~ 85%

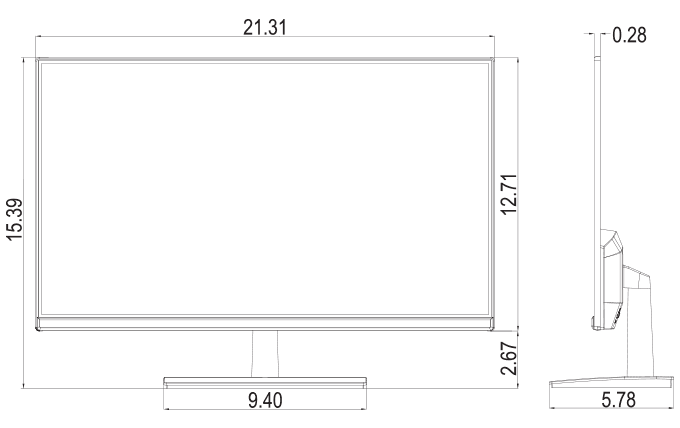

DIMENSIONS (WxHxD)
Inch w/ Stand (in)		21.31 x 15.39 x 5.78
Millimeter w/ Stand (mm)		541.37 x 391.07 x 147.00
WEIGHT
Unit Weight		13.88 lbs (6.3kg)
VESA™
Mount Size (mm)		100 x 100
COMPLIANT
Certificate		FCC-DOC, CE, ROHS
PACKAGE OF CONTENTS
Accessories		Power cord, Adapter, Stand, User's guide, HDMI cable

product description

GVision 24-inch security CCTV monitor is specifically engineered for continuous operation throughout the year. These monitors boast support for HDMI, BNC CVBS HD analog inputs and outputs, as well as automatic recognition of BNC AHD, TVI, CVI. The 24″ security CCTV monitor is capable of accommodating 5MP TVI, 4MP CVI, and 5MP AHD HD analog formats.
