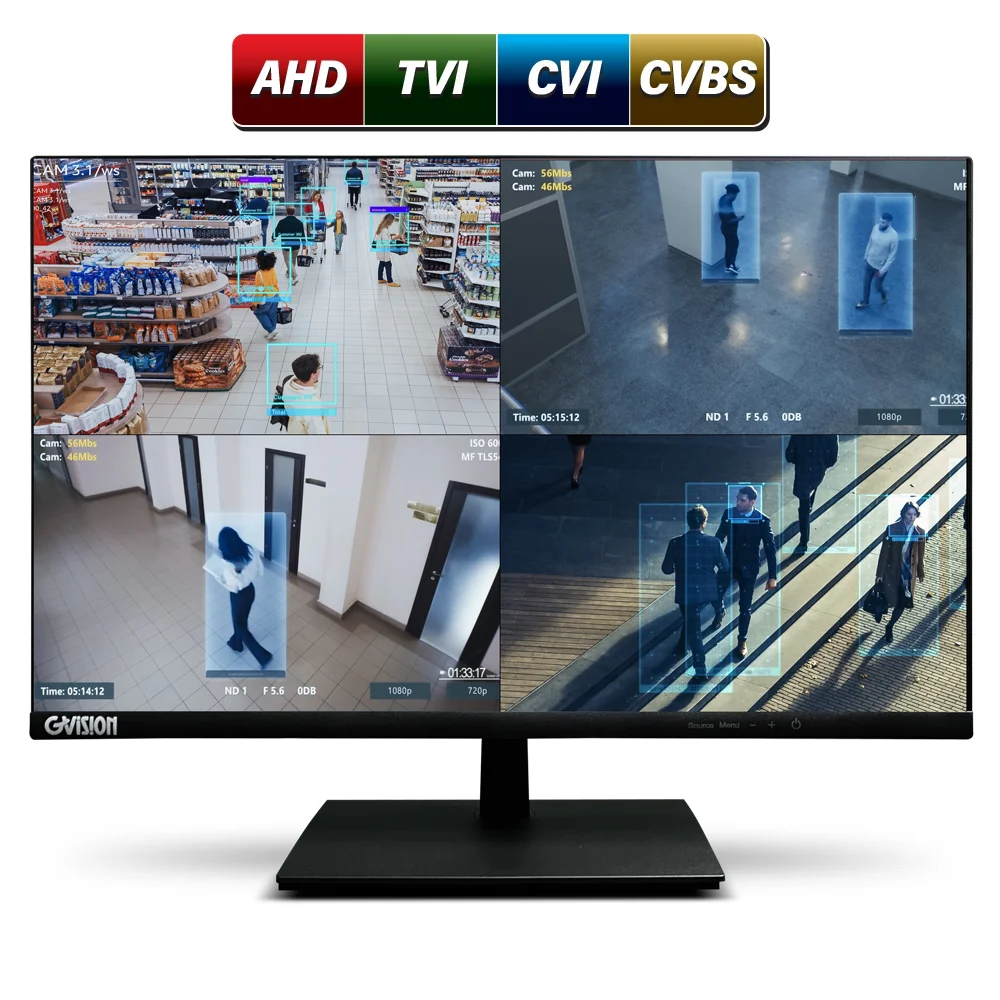

21.5" 1080p Security CCTV Monitor

C22BD – 21.5″ 1080p Security CCTV Monitor

Part Number: C22BD-A6-4000
Category: Security CCTV Monitors

21.5″ 1080p Full HD security CCTV monitor is built to operate 24/7, and designed to support digital HDMI, BNC in / output for CCTV camera.

21.5-Inch Screen Size
1920 x 1080 Full HD Resolution
250 Nit Brightness
Video signal: HDMI / VGA / BNC CVBS In / Out
3D Comb Filter / Noise Reduction / Anti Pixel Burn
BNC CVBS Looping Inputs
24/7 Operation Commercial CCTV Monitor
3-Year Warranty

MODEL
Part Number	C22BD-A6-4000
DISPLAY
Screen Size	21.5"
Resolution	1920 x 1080
Backlight Unit	LED
Aspect Ratio	16 : 9
Viewing Angle	178° / 178°
Brightness	250 Nit
Color	8 Bit – 16.7 Million Colours
Contrast Ratio	1000 : 1 Static CR
Response Time	5ms (G2G)
INTERFACE
CVBS BNC In	1
CVBS BNC Out	1
HDMI In	1
VGA In	1
PC Audio In	1
AUDIO
Speaker	3W x 2
FEATURES
Filter	3D combo filter
Noise Reduction	Yes
Anti Picture Burn-in	Yes
Remote Control	Yes
CABINET
Material	Plastic
Color	Black
POWER
Consumption	< 20W
Electrical Ratings	12V DC / 3A (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating	-4° F ~ 122° F (-20° C ~ 50° C)
Storage	-22° F ~ 158° F (-30° C ~ 70° C)
Humidity	10 ~ 85%
DIMENSIONS (WxHxD)
Inch (in)	19.96 x 14.57 x 5.87
Millimeter (mm)	507.1 x 370.3 x 149.1
WEIGHT
Unit Weight	8.81 lbs (4.0 Kg)
VESA™
Mount Size (mm)	100 x 100
INCLUDE
Accessories	Remote control, signal cable, user's manual, Power adaptor

product description

GVision’s 1080p Full HD 21.5” security CCTV monitor is built to operate 24 / 7. It support HDMI digital input to display superior image quality, and BNC in / output for CCTV camera.

download data sheet

C22BD Security CCTV Datasheet

21.5″ 1080p CCTV User’s Manual

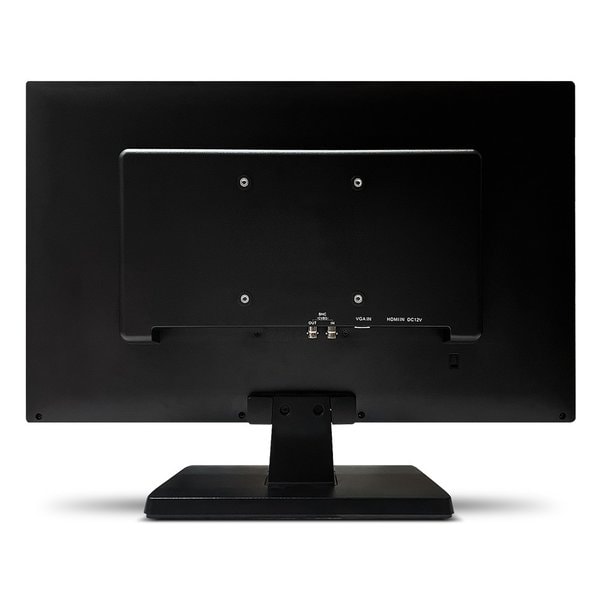

input interface

Multi Inputs

GVision’s 21.5-inch security CCTV display monitor supports both digital and analog inputs to use as normal office desktop monitor with VGA, HDMI input or security room where require BNC inputs as well.

product dimension
