C19BK – 19.5″ Security CCTV Monitor

Part Number: C19BK-A5-400G
Category: Security CCTV Monitors
19.5″ security CCTV monitor designed for 24/7 operation with dual HDMI inputs and BNC in/out supporting TVI, CVI, AHD, and CVBS auto detection.
  • 19.5-Inch Screen Size
  • 1600 x 900 HD Resolution
  • Interface: HDMI In/ 2x HD Analog In/ 1x HD Analog Out
  • TVI/CVI/AHD/CVBS Auto Recognition
  • Support 5 MP TVI, 4MP CVI, 5MP AHD
  • Auto Adjustment, OSD Control, OSD Language
  • Built to operate 24/7
  • 3-Year Warranty
MODEL
Part Number C19BK-A5-400G
DISPLAY
Screen Size 19.5"
Resolution 1600 x 900
Backlight Unit LED
Aspect Ratio 16 : 9
Viewing Angle 178° / 170°
Brightness 250 Nit
Color 8 Bit – 16.7 Million Colours
Contrast Ratio 1000 : 1 Static CR
Response Time 5ms (G2G)
INTERFACE
Inputs 2x HD Analogue(TVI/AHD/CVI), 1x HDMI
Outputs 1x HD Analogue(TVI/AHD/CVI)
HDMI (VESA) 800x600/ 1024x768/ 1280x720/ 1280x1024/ 1366x768/ 1440x900
HD Analog TVI: 720P@25/30fps, 1080P@25/30fps, 2560x1440@25/30fps, 5MP@20fps, 4MP@25fps, 3MP@18.75fps, 8MP@12fps
CVI: 720P@25/30/50/60fps, 1080P@25/30fps, 2560X1440@25/30fps, 4PM@25fps, 8MP@12fps
AHD: 720P@25/30fps, 1080P@25/30fps, 2560x1440@25/30fps, 5MP@20fps, 4MP@25fps,8MP@12fps
FEATURES
Auto Adjustment Yes
OSD Control Yes
OSD Language English, Spanish, Italian, German, French, Polish, Russia, Dutch, Danish
CABINET
Material Plastic
Color Black
POWER
Consumption 18W
Electrical Ratings DC12V /1.5A (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating 32° F ~ 104° F (0° C ~ 40° C)
Storage 14° F ~ 140° F (-10° C ~ 60° C)
Humidity 10 ~ 85%
DIMENSIONS (WxHxD)
Inch (in) 18.18 x 14.18 x 5.51
Millimeter (mm) 461.78 x 360.18 x 139.94
WEIGHT
Unit Weight 6.06 Lbs (2.75 Kg)
VESA™
Mount Size (mm) 75 x 75
COMPLIANCE
Certification FCC-DOC, CE, ROHS
INCLUDE
Accessories Power Cord, Adapter, Stand, User’s Manual, HDMI Cable
19.5 inch security CCTV monitor

GVision 19.5 inch security CCTV monitor is designed for professional surveillance environments that require dependable 24/7 operation. The monitor supports HDMI digital input and HD Analog input and output with TVI, CVI, AHD, and CVBS auto detection for flexible CCTV integration.

The C19BK monitor delivers clear HD image quality for modern video surveillance systems. It supports 5MP TVI, 4MP CVI, and 5MP AHD CCTV camera systems for high-quality monitoring performance. In addition, the display provides stable video performance for real-time security monitoring applications.

This security CCTV monitor works well in security control rooms, casinos, retail stores, transportation facilities, warehouses, schools, and industrial environments. The compact display size also allows flexible installation on desktops, counters, and surveillance workstations.

GVision designed this monitor for compatibility with DVR systems, CCTV security cameras, surveillance recorders, and commercial monitoring systems. The durable housing supports long-term operation in demanding surveillance environments where reliable performance is important.

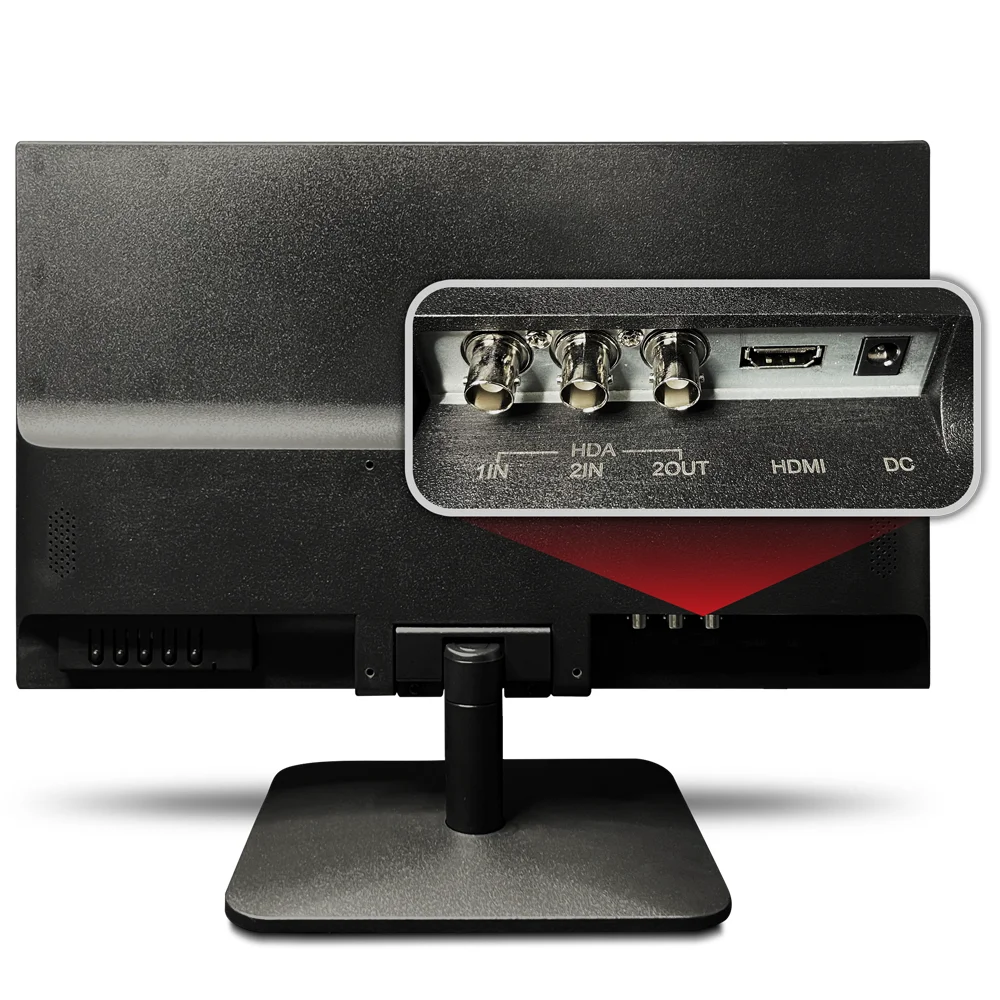

The display features two HD BNC analog inputs and one HD analog output for flexible security system connectivity. Furthermore, the HDMI connection supports high-definition video playback with sharp image quality and dependable surveillance performance.

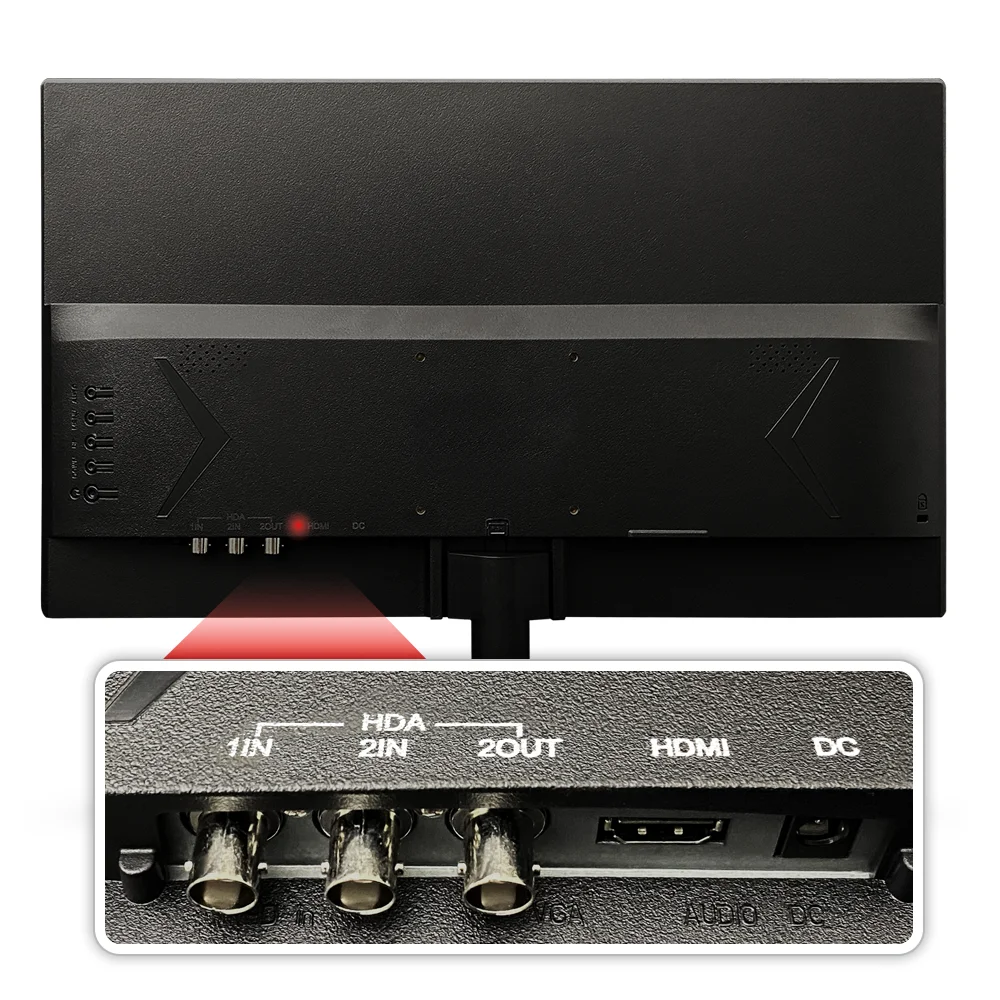

19.5 inch security CCTV monitor with HDMI and HD BNC analog input and output



download documents



product dimensions
19.5 inch security CCTV monitor dimensions
