| MODEL | |||
| Part Number | VW55CD-OM-400S8 | VW55CD-OM-400S1 | VW55CD-OM-400S3 |
| DISPLAY | |||
| Screen Size | 55" | ||
| Resolution | 1920 x 1080 | ||
| Display Area (mm) | 1209.63(H) x 680.34(V) | ||
| Bezel to Bezel Width | 0.45mm (L/R/T/B) | 0.85mm (L/R/T/B) | 3.9mm (2mm L/T, 1.9mm R/B) |
| Aspect Ratio | 16 : 9 | ||
| Viewing Angle | 178° / 178° | ||
| Brightness | 500 Nit | ||
| Color | 1,07B, 10 bit | ||
| Contrast Ratio | 1100 : 1 | ||
| Response Time | 8 ms (Typ.) | ||
| Saturation | 68% | ||
| LCD Technology | Commercial Grade IPS | ||
| Backlight Unit | LED | ||
| INTERFACE | |||
| HDMI In | 2 | ||
| DP In / Out | 1 / 1 | ||
| DVI In | 1 | ||
| RS-232 In / Out | 1 / 2 | ||
| USB In | 1 | ||
| FEATURES | |||
| Daisy Chain | Up To 10x10 Total of 100 Monitors | ||
| White Balance | Yes | ||
| Image Splicing | Yes | ||
| Double Frame | Yes | ||
| Auto Power Recovery | Yes | ||
| Anti Image Retention | Yes | ||
| Anti Burn-In | Yes | ||
| Remote Control | Yes | ||
| CABINET | |||
| Material | Metal | ||
| POWER | |||
| Consumption | < 210W | < 170W | < 180W |
| Electrical Ratings | AC 100V ~ 240V, 50/60Hz | ||
| TEMPERATURE | |||
| Operating | 32° F ~ 122° F (0° C ~ 50° C) | ||
| Storage | -4° F ~ 140° F (-20° C ~ 60° C) | ||
| HUMIDITY | |||
| Operating | 10% ~ 90% | ||
| Storage | 5% ~ 90% | ||
| DIMENSIONS (WxHxD) | |||
| Inch (in) | 47.7 x 26.8 x 4.4 | 47.7 x2 6.8 x 4.6 | 47.7 x 26.9 x 4.7 |
| Millimeter (mm) | 1210.51 x 681.22 x 110.78 | 1211.30 x 682.10 x 117.78 | 1213.50 x 684.30 x 120.08 |
| WEIGHT | |||
| Net Weight | 55.11 lbs (25kg) | ||
| VESA™ | |||
| Mount Holes (mm) | 400 x 400 / 600 x 400 (8x M6 Screws) | ||
| MOUNT OPTION | |||
| Custom Mount | VW-S (Scissor), VW-SD (Swing Door), VW-WM (Wall Mount) | ||
| TAA COMPLIANT | |||
| TAA Compliant | Yes | ||

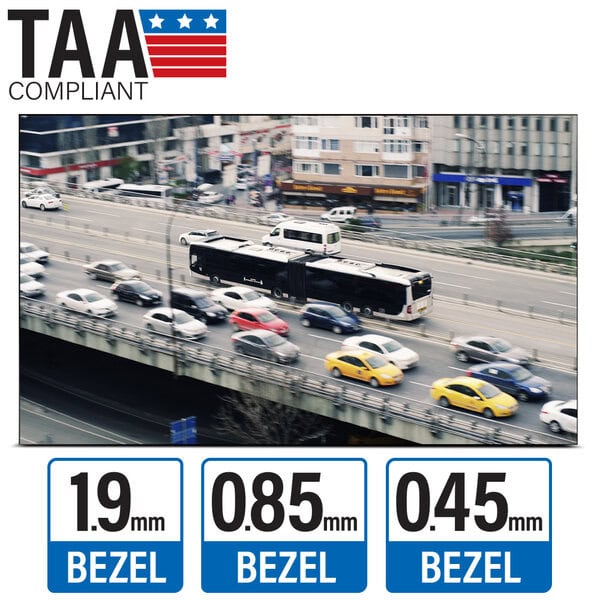

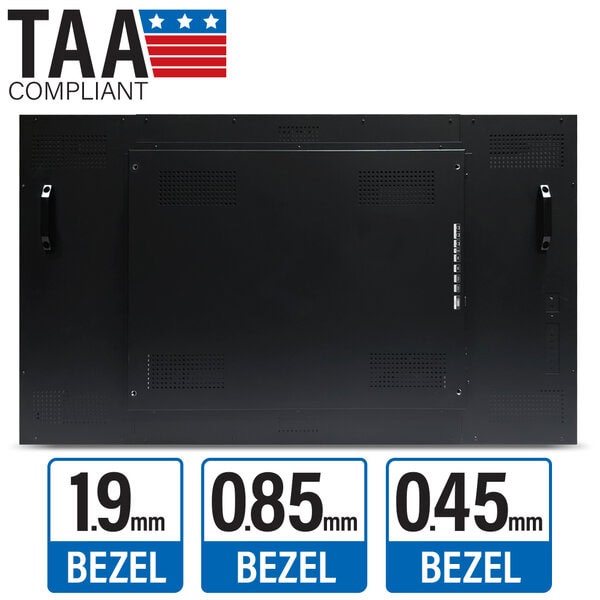

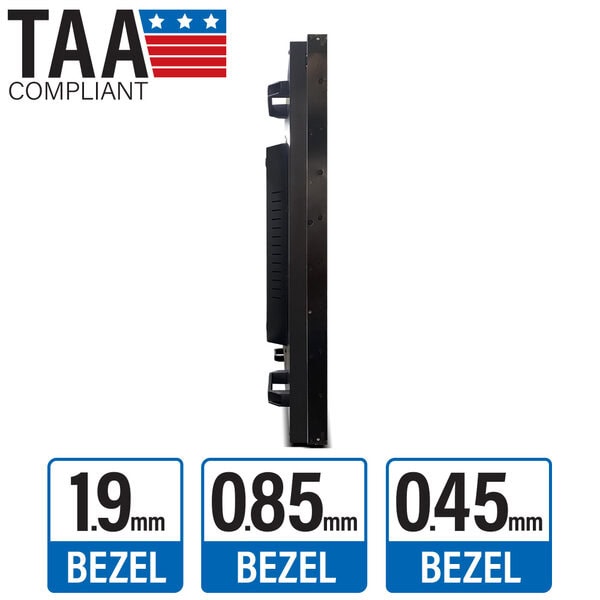

VW55CD – 0.45mm, 0.85mm, 1.9mm Thin Bezel Video Wall Monitor
These 55-inch TAA-compliant monitors feature 0.45mm, 0.85mm, and 1.9mm ultra-thin bezels, ideal for seamless video walls in control centers, offices, malls, stadiums, and transit hubs.
- 55 Inch, 1920×1080 Full HD Resolution
- 0.45mm, 0.85mm, 1.9mm Ultra Thin Bezel
- Interface: HDMI/ DVI/ DP In&Out/ RS232C In&Out/ USB
- Daisy Chain through DisplayPort (DP)
- Display 4K Content Over 2×2 Video Wall
- Configurable Up To 10×10 Screens
- Design for 24/7 / 365 Operation
- Scissor, Swing Door, Floor Stand, Custom Design Mount
- TAA Compliant / 3-Year Warranty
product description
GVision’s 55-inch TAA-compliant 1080p video wall displays are engineered for continuous 24/7/365 operation, making them ideal for high-demand environments. Featuring industry-leading ultra-narrow bezels of 0.45mm, 0.85mm, and 1.9mm, these monitors deliver seamless visual performance. Paired with GVision’s custom or standard mounting systems and PC-based video controllers, they form a complete video wall solution perfect for command and control centers, corporate offices, retail malls, stadiums, concert venues, and public transportation hubs.
download documents
interface and OSD

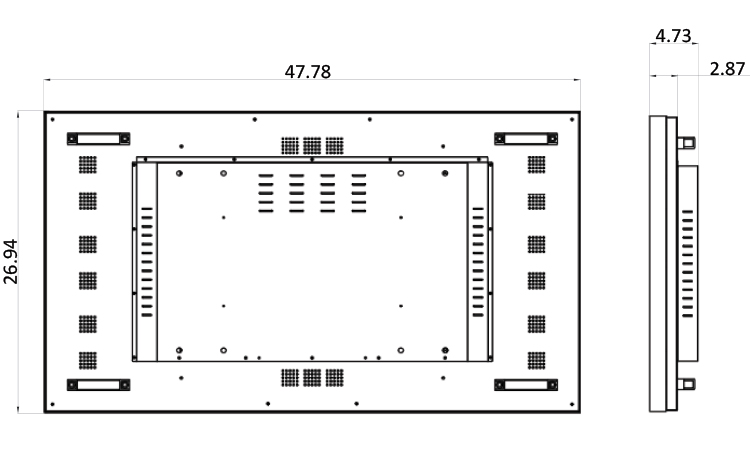

product dimension
video wall CONTROLLER
VW-CG SERIES
The GVision CG Series Video Wall Controller comes custom configured using our capture cards with up to 8 HDMI ports per card, The unit has a maximum of 10 configurable slots that can be used offering a mix of up to 80 Input & Output HDMI Ports.
video wall mount
MOUNT AND ACCESSORY
Video wall mounting options include standard wall mounts, scissor mounts, swing door mounts, floor stands and pedestal mounts. In addition, GVision can provide custom mounting, designed to fit your exact specifications.
