| MODEL | ||||||
| Part Number | D24ZD-AH-45PT | D24ZD-AH-45PS | D24ZD-OH-45PT | D24ZD-OH-45PS | D24ZD-OH-45P4 | D24ZD-OH-45P5 |
| DISPLAY | ||||||
| Screen Size | 24" | |||||
| Resolution | 1920 x 1080 | |||||
| Active Area | 527.04 (H) x 296.46 (V) | |||||
| Viewing | 178° / 178° (Angle) | |||||
| Response | 16ms (Time) | |||||
| Brightness | 250cd/m² | 400cd/m² | 1000cd/m² | |||
| Aspect | 16 : 9 (Ratio) | |||||
| Contrast | 3000 : 1 ((Ratio) | 1000 : 1 (Ratio) | 3000 : 1 (Ratio) | |||
| Depth | 16.4M (Color) | |||||
| Backlight | LED | |||||
| AUDIO | ||||||
| Speakers | 2 (Left + Right) | |||||
| INTERFACE | ||||||
| HDMI | 1 | |||||
| DP | 1 | |||||
| VGA | 1 | |||||
| Audio | 1 | |||||
| USB2.0 | 1 | |||||
| DC Jack | 1 (12V, Lockable DC Jack) | |||||
| TOUCH TECHNOLOGY | ||||||
| Type | PCAP Projected Capacitive | |||||
| Point | 10-Point | |||||
| Interface | USB Type-A | |||||
| FEATURES | ||||||
| Protection | IK07 Rating (Front) | |||||
| CABINET | ||||||
| Material | SECC | |||||
| Color | Black | |||||
| POWER | ||||||
| Consumption | < 24W | |||||
| Rating | DC 12V/5A (AC 100V ~ 240V, 50/60Hz) | |||||
| TEMPERATURE | ||||||
| Operating | 32° F ~ 122° F (0° C ~ 50° C) | |||||
| Storage | -4° F ~ 140° F (-20° C ~ 60° C) | |||||
| HUMIDITY | ||||||
| Operating | 20% ~ 80% | |||||
| Storage | 10% ~ 90% | |||||
| DIMENSIONS (WxHxD) | ||||||
| in | 21.53 x 12.95 x 1.88 | |||||
| mm | 547 x 329 x 48 | |||||
| WEIGHT | ||||||
| Net Weight | 11.09 lbs (5.4 kg) | |||||
| VESA™ | ||||||
| Holes (mm) | 100 x 100 | |||||
| COMPLIANT | ||||||
| TAA | Yes | |||||

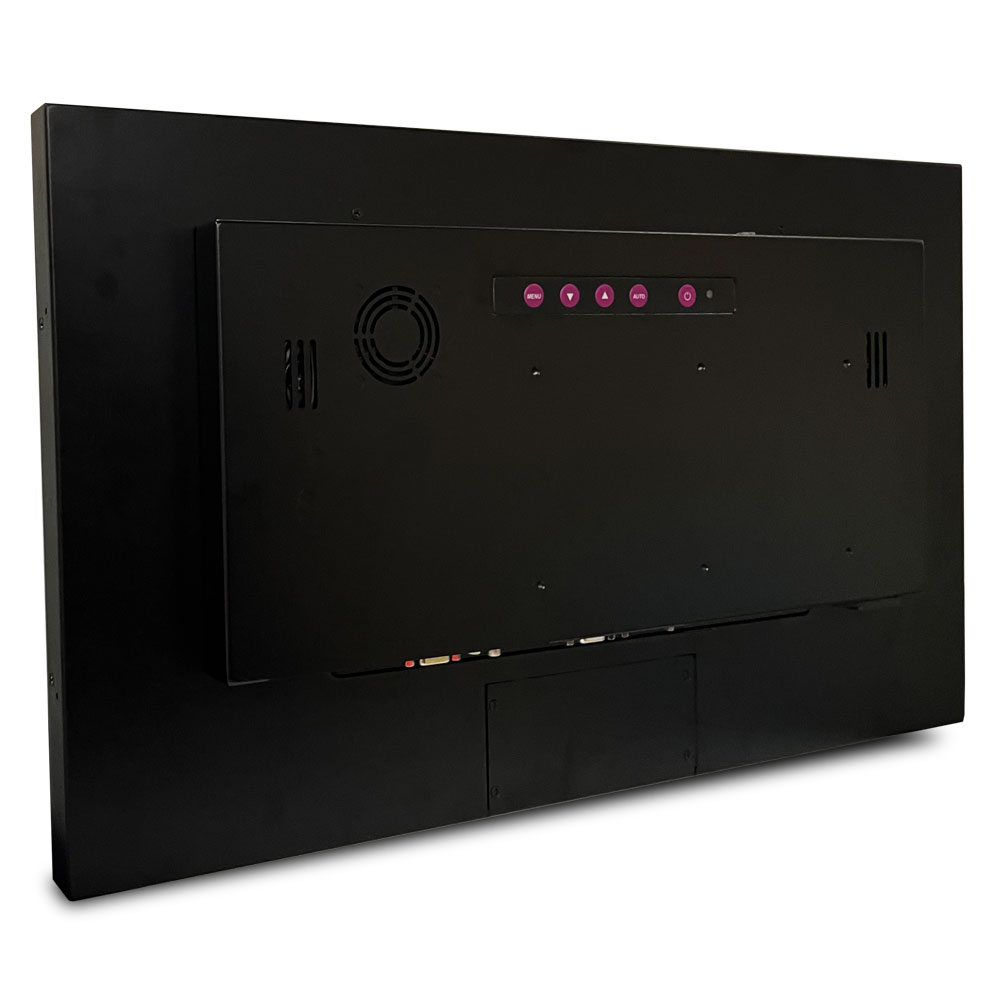

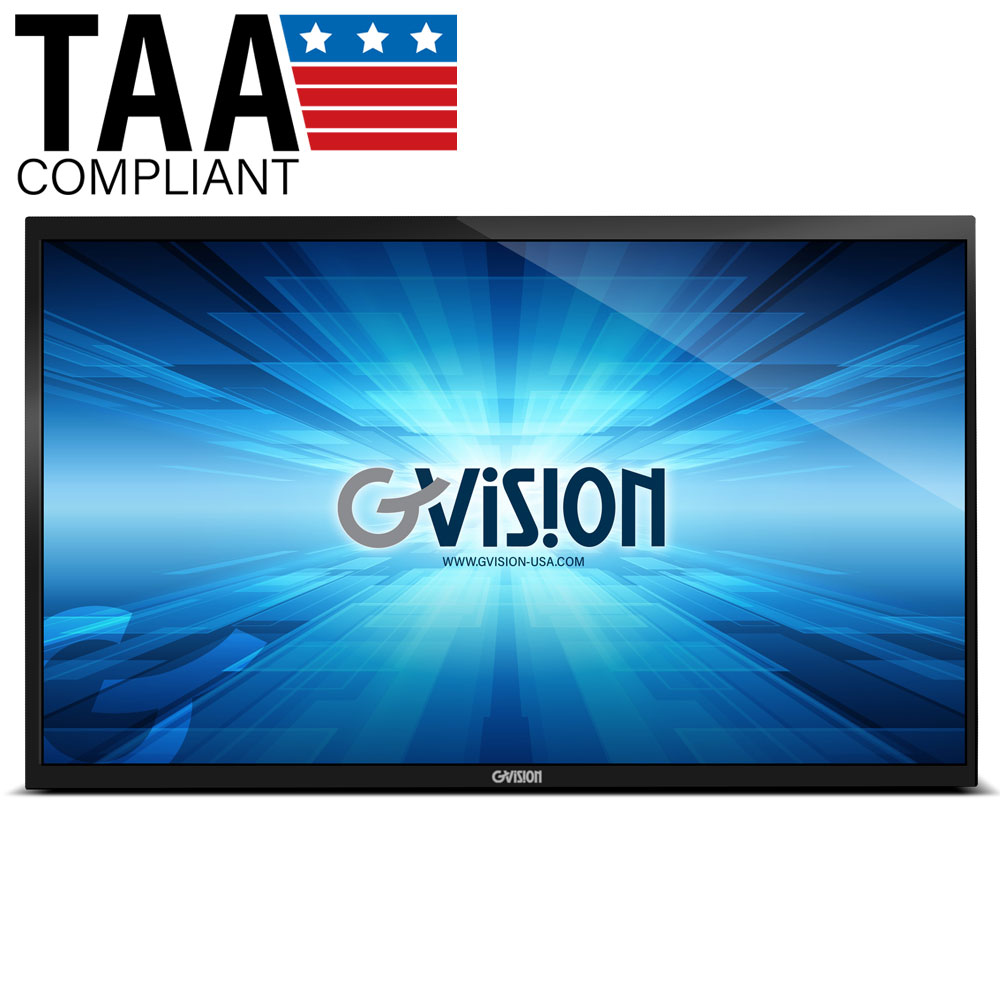

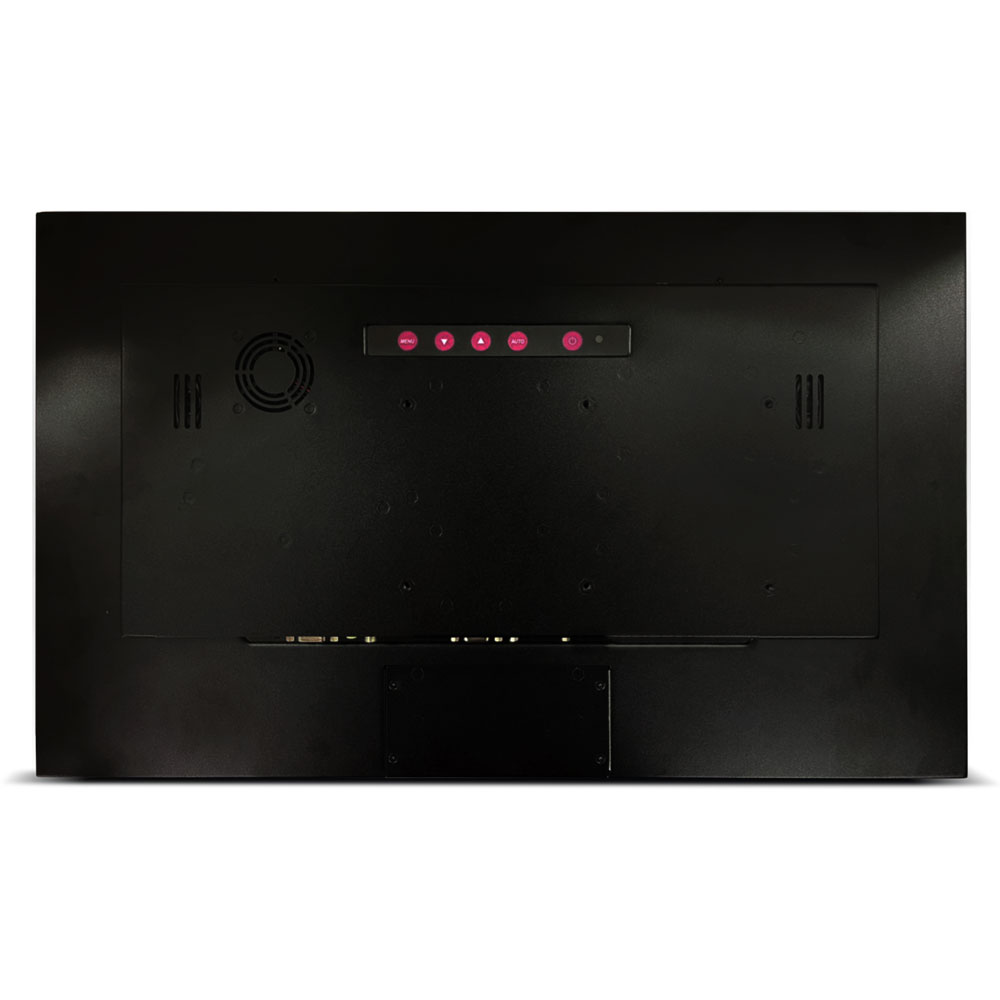

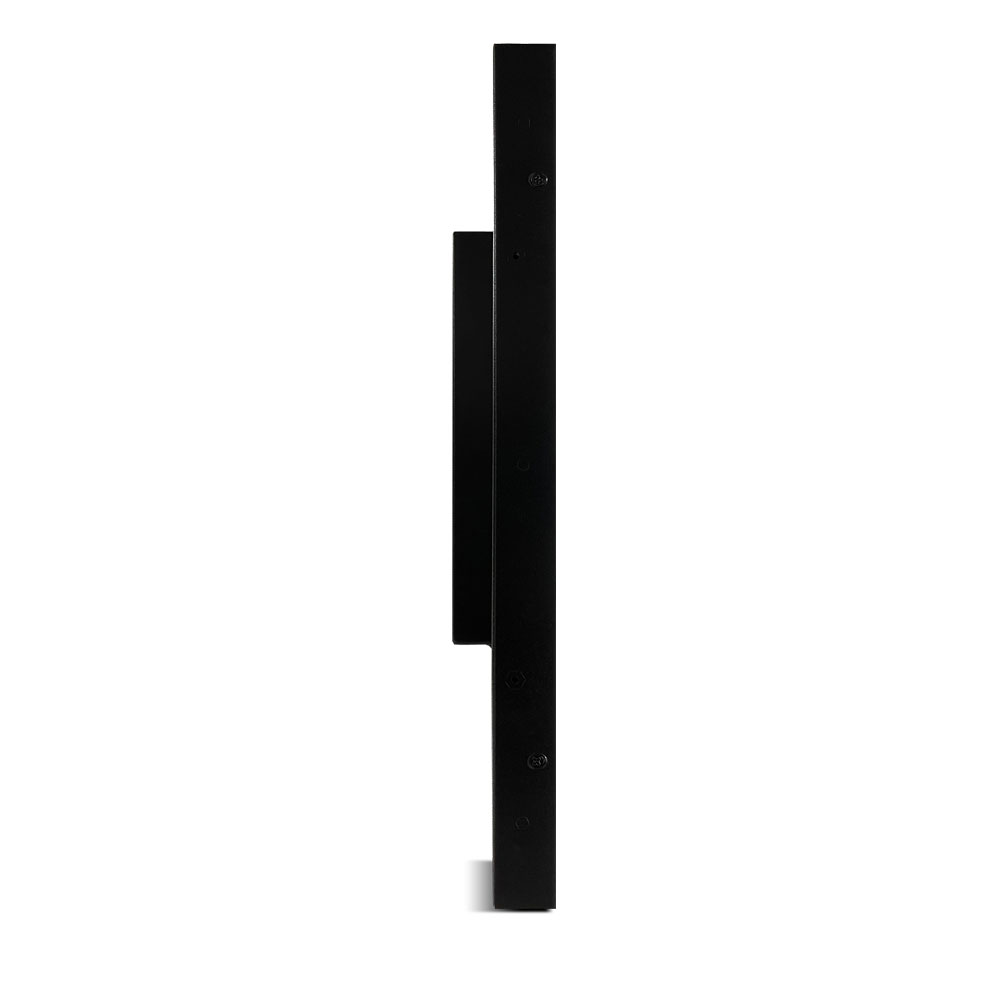

D24ZD – 24″ 1080p Desktop PCAP Touchscreen Monitor
GVison D24ZD series monitors are designed for harsh environments where a lockable DC input i s necessary for operation, such as airports, transportation hubs, and public areas requiring commercial-grade monitors to run continuously, 24/7.
- 24-Inch Wide Screen Size
- 1920 x 1080 Full HD Resolution
- Video Inputs: HDMI / VGA / DP / Audio
- 7H Hardness Touch Screen / IK07 Rating
- Projected Capacitive (PCAP) 10-Points Touch
- Lockable DC Power Jack
- 24/7 365 Operation Commercial Grade
- TAA Compliant
- 3-Year Warranty
product description
GVision TAA-Compliant desktop touchscreen monitor of D24ZD series are 1080p full HD wide desktop point of sale (POS) touchscreen monitor which display 24-inch wide full HD to display sharp and clear images and performs 10-points multi-touch of projected capacitive PCAP touchscreen.
download data sheet
product dimensions
