| MODEL | |
| Part Number | P15BX-AB-459G |
| DISPLAY | |
| Screen Size | 15 In |
| Resolution | 1024 x 768 |
| Backlight Unit | LED |
| Aspect Ratio | 4 : 3 |
| Viewing Angle | 160° / 150° |
| Response Time | 8ms |
| Brightness | 350cd/m² |
| Contrast Ratio | 800 : 1 |
| Display Area | 304.128mm (H) x 228.096mm (V) |
| Color | 16.7 M |
| AUDIO | |
| Speaker | 1W x 2 |
| INTERFACE | |
| DVI | 1 |
| VGA (15-Pin) | 1 |
| USB Type-A / RS232 | 1 / 1 |
| Audio | 1 |
| TOUCH TECHNOLOGY | |
| Technology | Resistive |
| Type | 5-Wire |
| Interface | USB Type-A / RS232 |
| Support OS | Windows / Linux |
| POWER | |
| Consumption | 36W |
| Input Voltage | DC12V / 3A (100~240V,50~60Hz) |
| TEMPERATURE | |
| Operating | 32° F ~ 104° F (0° C ~ 40° C) |
| Storage | -4° F ~ 140° F (-20° C ~ 60° C) |
| HUMIDITY | |
| Operating | 10% ~ 80% |
| DIMENSIONS (WxHxD) | |
| Inch (in) | 13.8 x 12.4 x 5.5 |
| Millimeter (mm) | 351.0 x 314.5 x 140.0 |
| WEIGHT | |
| Net Weight | 9.4 lbs (4.3 kg) |
| REGULATION | |
| Certification | CE / FCC |
| VESA™ | |
| Mount Holes (mm) | 75 x 75 |

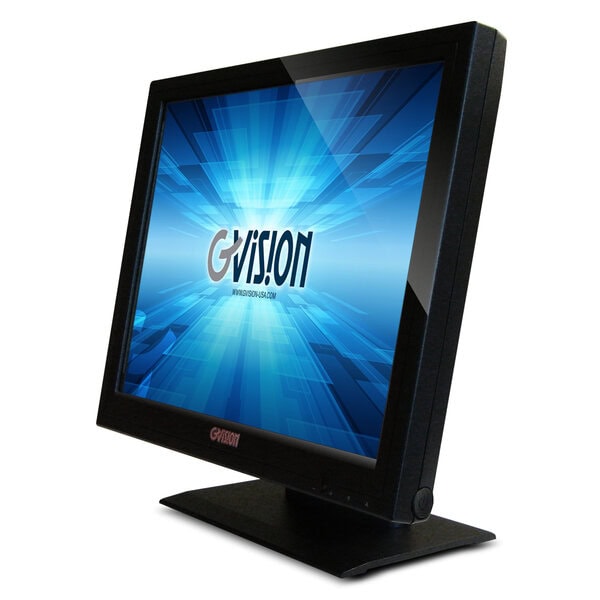

P15BX – 15″ 5-Wire Resistive Touchscreen Monitor
GVision’s P19BH is the ideal solution for demanding applications that requires a stable monitor and resilient touchscreen.
- 15-Inch Screen Size
- XGA 1024 x 768 Resolution
- I/O Ports: DVI-D / VGA / Audio / USB Type-A / RS232
- 350 nits Brightness
- 5-Wire Resistive Touch Technology
- LED Backlight Unit Monitor
- Integrated Stereo Speakers
- Design for 24/7 Operation
- 3-Year Warranty
product description
P15BX is a 15” touchscreen monitor perform 5-wire resistive touchscreen technology. Ideal for demanding applications that requires a stable monitor.
download data sheet

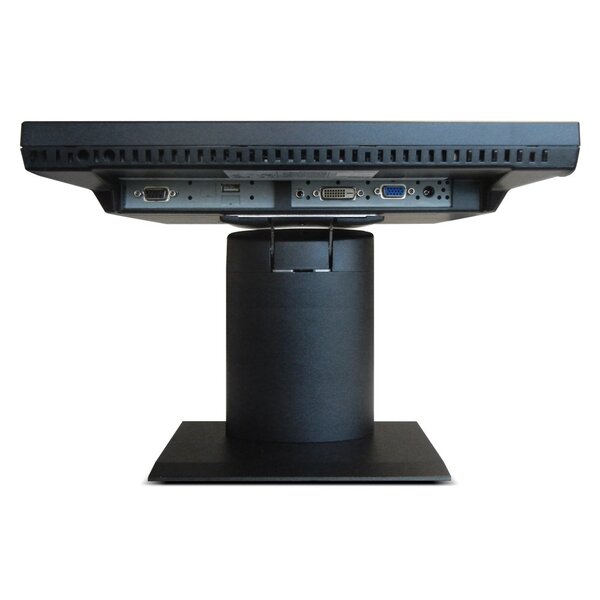

input interface
Multi Inputs
P15BX desktop/POS touchscreen monitor support VGA, DVI input and USB-Type-A, RS232 to use for the touch function
product dimensions
Please fill out the form if you need additonal information or if you have any questions.
