24" IP Monitor PoE Power and Data

24″ IP Monitor PoE Power and Data

Part Number: IP24BD-OK-400T
Category: IP Monitors

GVisions’ IP Series monitors are POE Power and Data devices with embedded Linux which is a powerful tool that enables viewing of live or recorded video feeds from network-enabled surveillance cameras.

24-Inch Screen Size/ 1920 x 1080 Full HD Resolution
Support Max. 5MP IP Camera/ Embedded Linux/ Support PoE Power and Data
H.264/ H.265 Compression Format
Graphical and Text Interfaces (GUI)
Interface: HDMI/ DVI/ VGA/ RJ45/ Audio/ USB2.0 Ports
Supports Max. 16CH Network Cameras via HUB / Switch
Onvif Profile S Compliance, Real-Time Streaming Protocol
Metal Chassis / TAA Compliance
3-Year Warranty

MODEL
Part Number	IP24BD-OK-400T
DISPLAY
Screen Size	24"
Resolution	1920 x 1080
Active Area	527.04(H) x 294.16(V)
Pixel Pitch	0.276.7(H) x 0.276.7(V)
Backlight Unit	LED Direct
Aspect Ratio	16 : 9
Viewing Angle	178° / 178°
Brightness	250 Nit
Color	16.7 Million
Contrast Ratio	3000 : 1
Response Time	5ms
INTERFACE
RJ45	1x PoE & Network Port
HDMI	1
DVI-D	1
VGA (15Pin D-Sub)	1
USB	2x USB 2.0
Audio In (R/L)	2x (RCA)
Earphone Out Audio In (R/L)	1x Phone jack, 3.5Ψ
AUDIO
Speaker	2x built-in speaker (2 Watt)
VIDEO
IP Video Support	16x (2592x1944) / 8x (2592x1944) / 4x (2592x1944)
CABINET
CABINET	Metal
FEATURE
Onvif	Yes / Onvif Profile S
POWER
POE Input DC Range	36VDC to 57VDC (Complies with IEEE802.3at IEEE802.3at/4-Pairs)
Power Consumption	Approx. 27W
POE Power Required	IEEE 802.3bt Type 3 (POE++ 60W)
TEMPERATURE
Operating	32° F ~ 122° F (0° C ~ 50° C)
Storage	-4° F ~ 140° F (-20° C ~ 60° C)
Humidity	10 ~ 85%

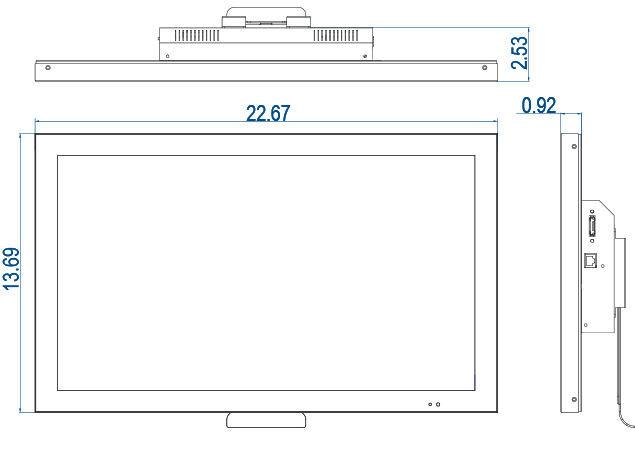

DIMENSIONS (WxHxD)
Inch (in)	22.67 x 13.69 x 2.53
Millimeter (mm)	585.56 x 353.09 x 79
WEIGHT
Unit Weight	12.56 Lbs (5.7 Kg)
VESA™
Mount Size (mm)	100 x 100
PACKAGE CONTENTS
Accessories	USB Mouse x1

product description

GVision TAA-compliant 24″ IP Monitor comprises POE Power and Data units equipped with embedded Linux. This robust framework facilitates the real-time observation of live or archived video streams emanating from IP surveillance cameras linked within the network. The IP monitor is designed to accommodate up to 5MP IP cameras, projecting visuals in 1080p full HD across HDMI, DVI, and VGA interfaces. Notably, this monitor adheres to ONVIF Compliance and operates through the Real-Time Streaming Protocol for seamless functionality. The 24″ IP monitor also support maximum 16CH network cameras via HUB or Switch.
