R19ZH – 19″ Rear Mount Projected Capacitive Touch Monitor

Part Number: R19ZH-OV-45P0
Category: Rear Mount Touch Monitor

GVision R19ZH is 19″ rear mount projected capacitive touch monitor. 10-point multi-touch with seamless flat bezel. Easy to clean (water and dust resistant).
  • 19-Inch Screen Size
  • 1280 x 1024 Resolution
  • Video Inputs: HDMI / VGA / DVI
  • 250 nits Brightness
  • Projected Capacitive (PCAP) 10-Points Touch
  • Zero Pressure Touch Activation
  • IP65 on the Front (Option)
  • LED Backlight Unit Monitor
  • 3-Year Warranty
MODEL
Part Number R19ZH-OV-45P0
DISPLAY
Screen Size 19"
Resolution 1280 x 1024
Backlight Unit LED
Aspect Ratio 5 : 4
Viewing Angle 170° / 160°
Brightness 250 nit
Color 16.7 Million
Contrast Ratio 1000 : 1
Response Time 5ms
INTERFACE
HDMI 1
DVI 1
VGA (15 Pin D-Sub) 1
USB Type-B 1
TOUCH TECHNOLOGY
Type Projected Capacitance (PCAP)
Points 10-Points
Support OS Window, Linux
CABINET
Material Metal
Color Black
POWER
Consumption < 20W
Electrical Ratings DC12V / 5A (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating 32° F ~ 104° F (0° C ~ 40° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
Humidity 10 ~ 85%
DIMENSIONS (WxHxD)
Inch (in) 17.2 x 14.3 x 1.8
Millimeter (mm) 438.6 x 363.7 x 47.0
WEIGHT
Unit Weight 11.0 lbs (5.0 kg)
COMPLIANT
Certification CE / FCC
VESA™
Mount Size (mm) 100 x 100
product description
GVision R19ZH is a 19″ rear mount projected capacitive touch monitor. 10-point multi-touch with the seamless flat bezel. R19ZH is purpose-built for system builders who require a rugged and durable touch screen solution that can easily be integrated into any embedded application. It is completely sealed to protect against the elements, which means it can be used either inside or out, and in high-traffic public-facing applications.
19-inch Rear Mount Touch Monitor Monitor



download data sheet

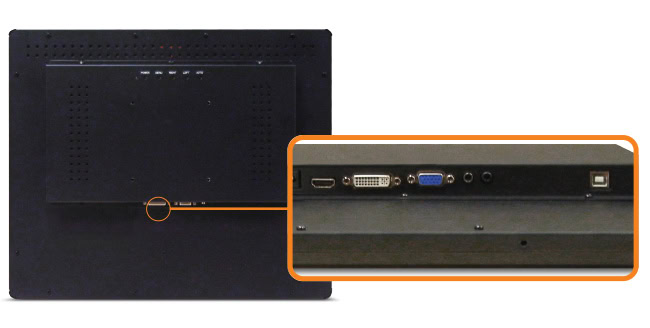

input interface
19-inch Rear Mount Touch Monitor Input Source
Multi Inputs
R19ZH touch monitor support VGA, HDMI, DVI input and USB-Type B to use touch function

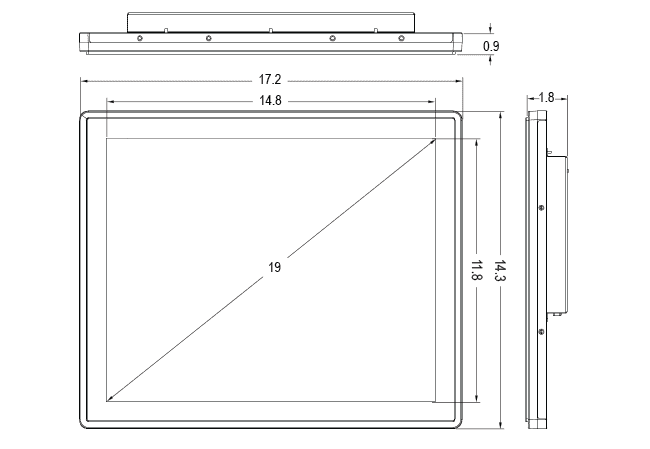

product dimensions
19-inch Rear Mount Touch Monitor Dimensions
