O17AH – 17″ Open Frame Projected Capacitive Touch Monitor

Part Number: O17AH-CV-45P0
Category: Open Frame Touch Monitors

GVision O17AH is 17-inch open frame projected capacitive touch monitor with rugged metal chassis and 10-points multi-touch is designed for commercial and industrial applications.
  • 17-Inch Screen Size
  • 1280 x 1024 Resolution
  • Video Inputs: HDMI / VGA / DVI
  • 250 nits Brightness
  • Projected Capacitive (PCAP) 10-Points Touch
  • Zero Pressure Touch Activation
  • 170° /160° View Angle
  • LED Backlight Unit Monitor
  • 3-Year Warranty
MODEL
Part Number O17AH-CV-45P0
DISPLAY
Screen Size 17"
Resolution 1280x 1024
Backlight Unit LED
Aspect Ratio 5 : 4
Viewing Angle 170° / 160°
Brightness 250 nit
Color 16.7 Million
Contrast Ratio 1000 : 1
Response Time 5ms
INTERFACE
HDMI 1
DVI 1
VGA (15 Pin D-Sub) 1
USB Type-B 1
TOUCH TECHNOLOGY
Type Projected Capacitance (PCAP)
Points 10-Points
Support OS Window, Linux
CABINET
Material Metal
Color Black
POWER
Consumption < 18W
Electrical Ratings DC12V / 5A (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating 32° F ~ 104° F (0° C ~ 40° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
Humidity 10 ~ 85%
DIMENSIONS (WxHxD)
Inch (in) 14.6 x 12.2 x 1.9
Millimeter (mm) 371.0 x 309.8 x 48.6
WEIGHT
Unit Weight 9.9 lbs (4.5 kg)
COMPLIANT
Certification CE / FCC
VESA™
Mount Size (mm) 100 x 100
product description
GVision 17-inch open frame projected capacitive touch monitor with rugged metal chassis and 10-points multi-touch is designed for commercial and industrial applications, such as kiosks, digital signage, military, security, industrial equipment, and instrumentation equipment. This product can provide high brightness/contrast to achieve a better viewing effect and good reliability in wide environments conditions.
17-inch Open Frame Touch Monitor Monitor



download data sheet

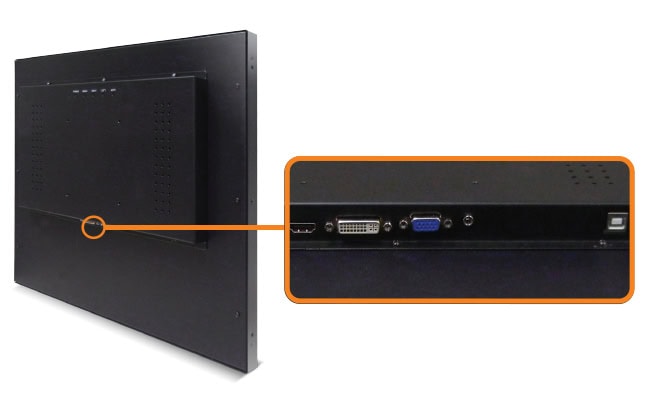

input interface
17-inch Open Frame Touch Monitor Input Source
Multi Inputs
O17AH touch monitor support VGA, HDMI, DVI input and USB-Type B to use touch function



product dimensions
19-inch Open Frame Touch Monitor Dimensions
