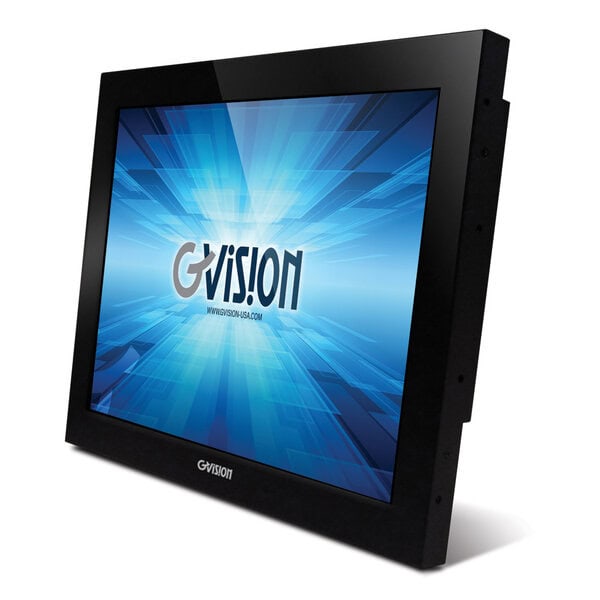

15" Open Frame PCAP Touchscreen Monitor

O15AX – 15″ Open Frame PCAP Touchscreen Monitor

Part Number: O15AX-CV-45P0
Category: Open Frame Touch Monitors

GVision O15AX is 15″ open frame projected capacitive 10-points PCAP touch monitor with rugged metal chassis with multi-touch is designed for commercial and industrial applications.

15-Inch Screen Size
1024 x 768 Resolution
Video Inputs: HDMI / VGA / DVI
270 nits Brightness
Projected Capacitive (PCAP) 10-Points Touch
Zero Pressure Touch Activation
24 / 7 / 365 Design to Operate
LED Backlight Unit Monitor
3-Year Warranty

MODEL
Part Number	O15AX-CV-45P0
DISPLAY
Screen Size	15"
Resolution	1024 x 768
Backlight Unit	LED
Aspect Ratio	4 : 3
Viewing Angle	170° / 170°
Brightness	270 nit
Color	16.2 Million
Contrast Ratio	1500 : 1
INTERFACE
HDMI	1
DVI	1
VGA (15 Pin D-Sub)	1
USB Type-B	1
TOUCH TECHNOLOGY
Type	Projected Capacitance (PCAP)
Points	10-Points
Support OS	Window, Linux
CABINET
Material	Metal
Color	Black
POWER
Consumption	< 15W
Electrical Ratings	DC12V / 5A (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating	32° F ~ 104° F (0° C ~ 40° C)
Storage	-4° F ~ 140° F (-20° C ~ 60° C)
Humidity	10 ~ 85%
DIMENSIONS (WxHxD)
Inch (in)	13.8 x 11.1 x 1.7
Millimeter (mm)	352.6 x 284.0 x 45.2
WEIGHT
Unit Weight	9.9 lbs (4.5kg)
COMPLIANT
Certification	CE / FCC
VESA™
Mount Size (mm)	75 x 75

product description

GVision O15AX is a 15″ PCAP touch solution that can be integrated into a wide variety of applications. The O15AX provides a truly customizable solution that allows for easy integration of anti-dust/anti-spill proof IP54 glass (option). The metal chassis with brackets makes this monitor easy to mount into any enclosure: point of information, interactive maps, self-service, self-check-in, or ATMs. Touch technology can be customized for your projects.
