MODEL | |
Part Number | PE10ZJ-OR-45PTD |
DISPLAY | |
Screen Size | 10.1" |
Resolution | 1280 x 800 |
Display Area (mm) | 216.96(H) x 135.6(V) |
Pixel Pitch (mm) | 0.1695(H) x 0.1695(V) |
Backlight Unit | LED |
Aspect Ratio | 16 : 10 |
Viewing Angle | 170° / 170° |
Brightness | 350 Nit |
Color | 16.7 Million |
Contrast Ratio | 800 : 1 |
Response Time | 25ms |
INTERFACE | |
HDMI In | 1 |
RJ45 (PoE) | 1 |
USB 2.0 / 3.0 | 1 / 1 |
Micro SD | 1 |
Earphone Out | 1 |
AUDIO | |
Speaker | Built-in 8R / 5W x 2 |
TOUCH TECHNOLOGY | |
Type | PCAP |
Point | 10-Point |
Surface Hardness | 6H |
SYSTEM | |
OS | Android 11 |
CPU | Rockchip RK3566 Quad Core 64 bit Cortex-A55 1.8GHz |
GPU | Quad Core ARM G52 2EE |
RAM / ROM | 4GB / 32GB On-board EMMC 5.1 high-speed storage |
Network | WiFi |
CABINET | |
Color/Material | Black/Metal |
POWER | |
Power Source | PoE RJ45 Cable |
Input DC Range | 36V DC to 57V DC (Complies with IEEE802.3 @/4-Pairs) |
Required PoE Device up to 40W | |
TEMPERATURE | |
Operating | 32° F ~ 140° F (0° C ~ 60° C) |
Storage | 14° F ~ 140° F (-10° C ~ 60° C) |
Humidity | 10 ~ 85% |
DIMENSIONS (WxHxD) | |
Inch (in) | 9.67 x 6.47 x 1.37 |
Millimeter (mm) | 245.8 x 164.4 x 35 |
WEIGHT | |
Unit Weight | TBD |
VESA™ | |
Mount Size (mm) | 75 x 75 |
INCLUDE | |
Accessories | DC12V / 2A power adapter, Power cord |
Products
- Antibacterial Touch Monitors
- All-In-One POS Touchscreen Monitors
- Desktop Touchscreen Monitors
- POS Touch Monitors
- Stretched Bar Monitor
- KIOSK Touch Monitors
- Open Frame Touch Monitors
- Rear Mount Touch Monitors
- Large Format Touch Monitors
- Medical Touch Monitors
- LED Tile Monitors
- PoE Monitors
- IP PVM Monitors
- IP Monitors
- Security CCTV Monitors
- Smart Shelf Monitors
- Video Wall Monitors
- Video Wall Controller
- Mounts and Accessories

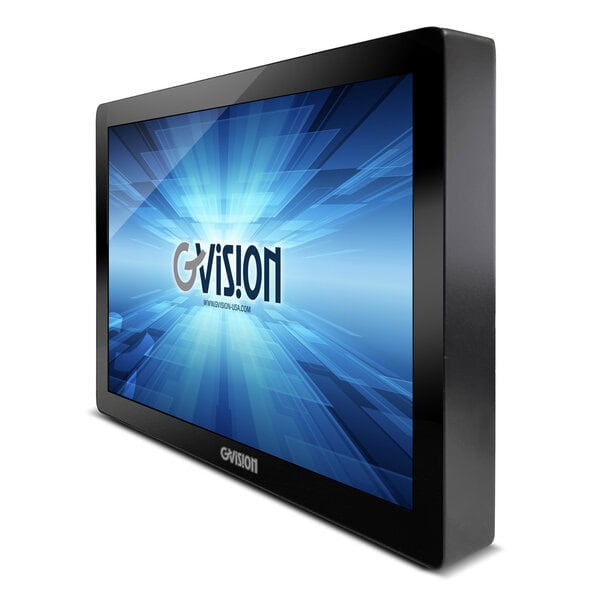

PoE – 10.1″ PCAP Touchscreen & Android OS POE Monitor
Part Number: PE10ZJ-OR-45PTD
Category: PoE Monitors
Category: PoE Monitors
GVision 10.1″ Touchscreen POE Monitor with built-in Android 11 is specially designed to operate 24/7 and is equipped with optional PoE, allowing more flexibility to meet your needs.
- 10.1-Inch Size / 1280 x 800 Resolution
- Built-In ANDROID 11 Operating System
- 4GB RAM / 32GB On-Board EMMC 5.1 High-Speed Storage
- 10-Point PCAP Touchscreen

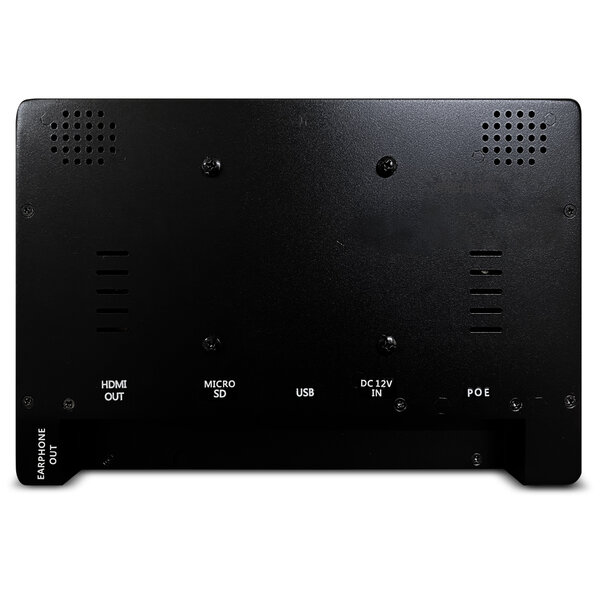

- Interface: HDMI / RJ45 (PoE) / USB2.0 / USB3.0 / Micro SD
- Protectable Front Glass / Metal Housing
- 24 / 7 Operation Design
- 3-Year Warranty
product description
GVision 10.1″ Touchscreen POE Monitor is an All-In-One Monitor with built-in Android 11, specially designed to operate 24/7. It’s equipped with Rockchip’s RK3566, which is a low-power, high-performance processor with integrated Quad Core 64 Bit CPU. The standard PoE (Power Over Ethernet) power and data, 10-Point PCAP Touch Screen, and 350 nits brightness combined with the powerful processor will allow it to fit various applications and your needs.
download
product dimension
