| MODEL | |
| Part Number | L12A-30ECK |
| DISPLAY | |
| Pixel Pitch | 1.2mm |
| Pixel Density | 640000 dot/m² |
| LED Type | COB |
| Panel Size (mm) | 600(W) x 337.5(H) x 45(D) |
| Panel Resolution | 480(W) x 270(H) |
| Brightness | 600 cd/m² |
| Contrast Ratio | 8000 : 1 |
| Viewing Angle (H / V) | 160° / 160° |
| Panel Life | 100,000 Hours |
| Refresh Rate (Hz) | 3840 |
| Frame Rate (Hz) | 50/60 |
| Brightness Adj. | Programmable / Auto / Manual |
| Color Temperature (K) | 2000~10000 (Adjustable) |
| FEATURES | |
| Serviceability | Front / Rear |
| MATERIAL | |
| Cabinet | Die-Casting Aluminum / Plastic Back Shell |
| POWER | |
| Min. Consumption | 125W |
| Max. Consumption | 500W |
| RATING | |
| IP Rating | IP30 |
| WEIGHT | |
| Net Weight (Kg/pc) | 13.22 lbs (6 Kg) |

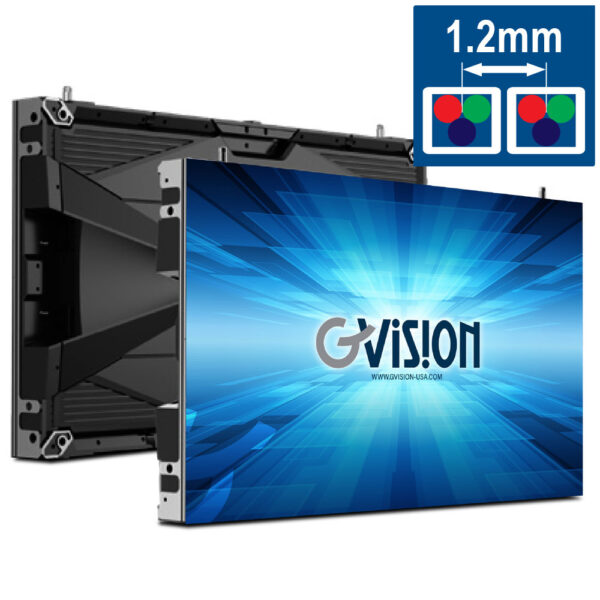

L12A – 1.2mm Pixel Pitch Indoor LED Monitor
1.2mm Pixel Pitch LED display offer stunning high-resolution visuals perfect for indoor applications. With exceptional brightness of 600 nits, our LED monitors ensure crisp, vibrant images that captivate and engage.
- 1.2mm Pixel Pitch
- 600 nits High Brightness
- Brightness and Chroma Color Calibration
- Versatile and Efficient Installation
- Die-Casting Aluminum Cabinet Material
- User-Friendly Front and Rear Maintenance
- Operate 100,000 Hours of Lifespan
- IP30 IP Rating
- TAA Compliant / 3-Year Warranty
product description
GVision 1.2mm Pixel Pitch indoor LED Monitor provides a comprehensive selection of LED tile display technologies suitable for various settings such as studios, office conferences, professional AV environments, and more. These LED tiles feature a fine-pitch screen, delivering an impressive contrast ratio of 8000:1. Specifically designed for indoor applications, these LED tiles offer exceptional visual performance. With their high resolution and brightness capabilities of up to 600 nits, GVision’s LED displays are ideal for individuals seeking top notch image quality and vibrant visuals.
download data sheet

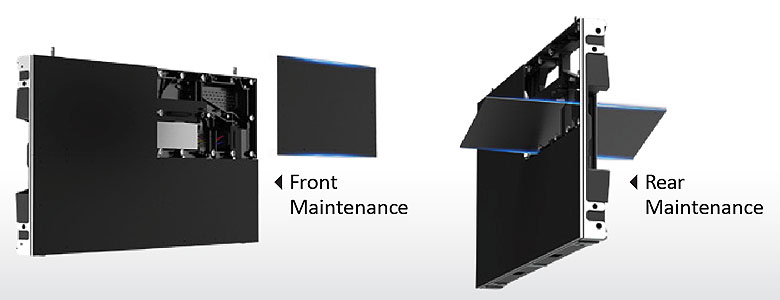

MAINTENANCE
Support full front and rear installation and maintenance to fulfill the needs of various scenes.
VISUALS
With a wide color gamut, high contrast, and ultra-wide viewing angle, it allows detailed image presentation that re stored the true-to-life colors.

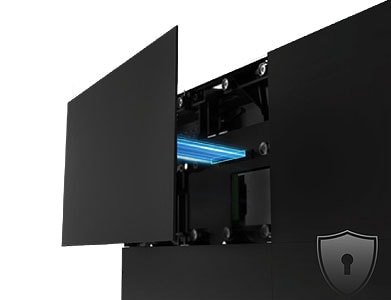

EXCELLENT DISPLAY EFFECT
Modules are connected with gold finger connectors for higher stability. One-piece die-cast aluminum frame delivers higher integration with reliable quality. Support power supply, receiving card & hub board integrated into one board for fast disassembly as a whole.

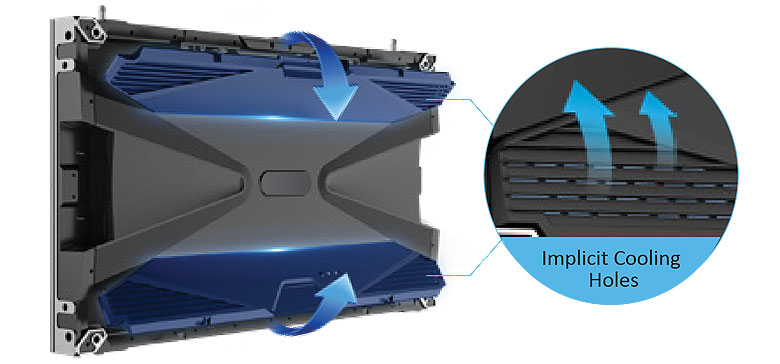

OPERATION
Speeding up the operation, it features a lightweight tri-fold back shell that allows for quick installation and maintenance .space. Module removal takes only 1 s before dealing with potential failures.
