24" 1080p Security CCTV Monitor

C24BD – 24″ 1080p Security CCTV Monitor

Part Number: C24BD-AU-4000
Category: Security CCTV Monitors

GVision’s 24″ 1080p Full HD CCTV security monitor is designed for 24 / 7 operating. It support HDMI, VGA, BNC CVBS and BNC AHD/TVI/CVI looping inputs. C24BD security CCTV monitor is featured Anti-Pixel burn technology and superior quality V56 chipset.

24-Inch Screen Size
1920 x 1080 Full HD Resolution
Video Inputs: HDMI / VGA / BNC CVBS
BNC AHD / TVI / CVI Looping Inputs
Supports Up To 5MP AHD, 4MP TVI / 3MP CVI Input
Anti-Pixel Burn Technology
178° /178° Wide View Angle
Built to operate 24/7 Commercial CCTV Monitor
3-Year Warranty

MODEL
Part Number	C24BD-AU-4000
DISPLAY
Screen Size	24"
Resolution	1920 x 1080
Backlight Unit	LED
Aspect Ratio	16 : 9
Viewing Angle	178° / 178°
Brightness	250 Nit
Color	16.7 Million
Contrast Ratio	1000 : 1
Response Time	5ms
INTERFACE

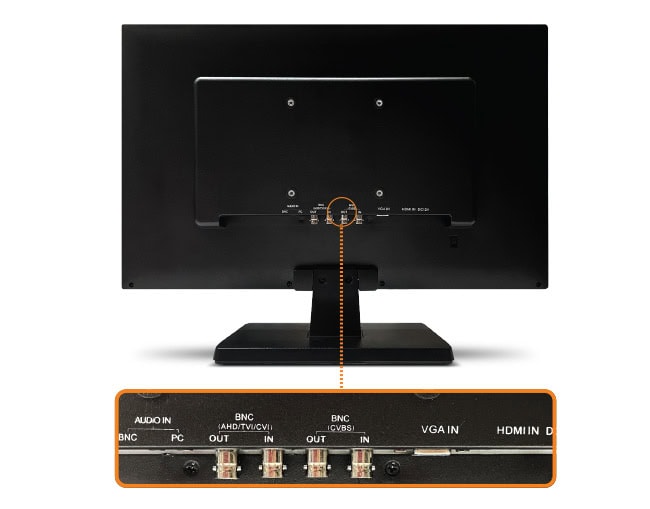

BNC In	4in1x1 (HD-TVI/HD-CVI/AHD 2.0)
BNC Out	4in1x1 (HD-TVI/HD-CVI/AHD 2.0)
CVBS BNC In	1
CVBS BNC Out	1
HDMI In	1
VGA In	1
PC Audio In / Out	1 / 1
USB (Firmware)	1
AUDIO
Speakers	3W x 2
FEATURES
Filter	2D / 3D combo
System	PAL / NTSC / SECAM
Anti-Picture Burn-in	Yes
Remote Control	Yes
CABINET
Color	Black
POWER
Consumption	< 22W
Electrical Ratings	12V DC / 3A (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating	-4° F ~ 122° F (-20° C ~ 50° C)
Storage	-22° F ~ 158° F (-30° C ~ 70° C)
Humidity	10 ~ 85%
DIMENSIONS (WxHxD)
Inch (in)	21.88 x 15.68 x 5.87
Millimeter (mm)	555.9 x 398.5 x 149.1
WEIGHT
Unit Weight	8.3 lbs (3.8kg)
VESA™
Mount Size (mm)	100 x 100

product description

GVision’s CCTV security monitors are design for 24 / 7 / 365 operating. It support HDMI, VGA, BNC CVBS and BNC AHD/TVI/CVI looping inputs. C24BD security CCTV monitor is featured Anti-Pixel burn technology and superior quality V56 chipset
