| MODEL | |
| Part Number | PVM32ZD-OC3-4 |
| DISPLAY | |
| Screen Size | 32" |
| Resolution | 1920 x 1080 |
| Backlight Unit | LED |
| Aspect Ratio | 16 : 9 |
| Viewing Angle | 178° / 178° |
| Brightness | 350 Nit |
| Color | 16.7 Million |
| Contrast Ratio | 1000 : 1 |
| Response Time | 5ms |
| INTERFACE | |
| CVBS Cam Out | 1 |
| HDMI In | 1 |
| VGA In | 1 |
| SD Slot | 1 |
| RJ45 Out | 1 |
| USB | 1 |
| IP CAMERA | |
| Sensor | 1/2.8" STARVIS Sony Sensor |
| Resolution | 1920x1080@25fps |
| WDR | 120dB |
| Face Detection | 8 Face Max |
| Face Capture | Yes, Local stock in TF Card |
| Minimum Illumination | 0.1 Lux (Color), 0.01Lux (B/W) |
| Compression | H.264, H.265 |
| Compliance | Onvif Profile S/Q/G/T |
| Lens | 3.3-12mm Vari-focal IR Corrected |
| Recording | Local Micro SD, Remote FTP |
| Network Protocol | Onvif , IPv4,802.1x,HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, Smart tracking box |
| SD CARD READER | |
| Supporting Format | AVI, MOV, MP4, 3GP, MPG, VOB, DAT, WMV, ASF, JPEG, BMP, MP3, WMA |
| Max. Resolution | 1920X1080@30fps |
| Max. Support Volume | 64GB NTFS/FAT32 |
| Max. Stream | 15Mbit/s |
| CABINET | |
| Color | Black |
| Meterial | Metal |
| POWER | |
| Consumption | 35W |
| Electrical Ratings | DC24V (AC 110V ~ 240V, 50/60Hz) |
| PoE Requirement | PoE Standard IEEE802.3bt |
| 60W | |
| TEMPERATURE | |
| Operating | 32° F ~ 122° F (0° C ~ 50° C) |
| Humidity | 10 ~ 85% |
| DIMENSIONS (WxHxD) | |
| Inch (in) | 29.13 x 19.17 x 2.44 |
| Millimeter (mm) | 740 x 487 x 62 |
| WEIGHT | |
| Unit Weight | 35.49 lbs (16.1 kg) |
| VESA™ | |
| Mount Size (mm) | 100 x 100 |
| COMPLIANT | |
| Certifications | NDAA / FCC / CE / RoHS |
| Accessory | |
| Include | AC adapter, Remote control, User's manual |

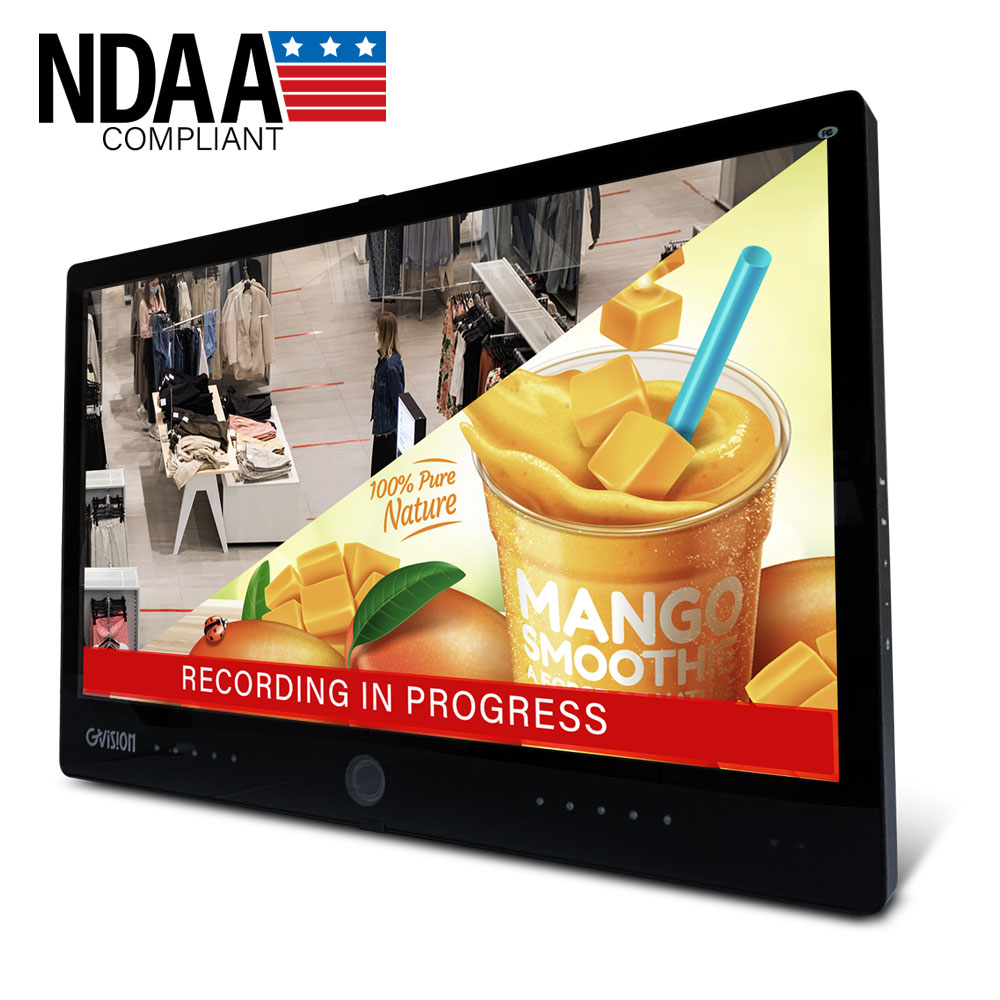

PVM32ZD – 32″ AI PVM with PoE
32” AI PVM with PoE supports network PoE power and a 1080p IP camera with a 1/2.8” STARVIS Sony sensor.
- 32-Inch Screen/ 1920×1080 Resolution
- 1080p IP Camera with Face Detect & Smart Tracking / Auto Switch Sensor
- On Screen Warning Message On/Off
- Motion Sensor for Auto Switch
- I/O Ports: CVBS Cam Out / HDMI In / VGA In / RJ45 Out / SD Slot / USB
- Built to operate 24/7
- PoE Standard IEEE802.3bt, 60W, Power & Data
- NDAA Compliant/ 3-Year Warranty
- AI feature partnering with Kabob (CMS) software
*PoE & Terminal block Available
product description
The 32″ AI PVM features a 1080p IP camera powered by PoE and equipped with a high-performance SONY Exmor sensor. Built for continuous 24/7 operation, it delivers reliable monitoring and intelligent on-screen display. The AI PVM provides simultaneous IP and CVBS video loop-out and includes motion-detection–triggered audible alerts, even if the camera image is lost.
download documents
I/O Ports
Multi Inputs
32-inch AI PVM PoE power monitor supports HDMI IN, VGA In, CVBS BNC Cam Out, RJ45 Out, USB for firmware.

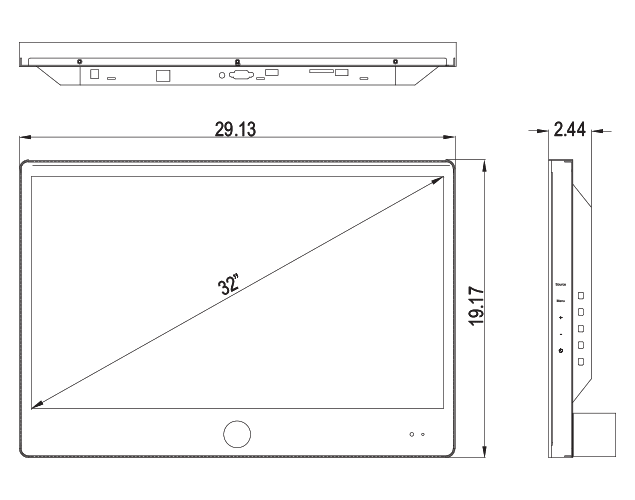

product dimensions
