| MODEL | |
| Part Number | IP24BD-OK-400TD |
| DISPLAY | |
| Screen Size | 24" |
| Resolution | 1920 x 1080 |
| Active Area | 527.04(H) x 296.46(V) |
| Pixel Pitch | 0.2745(H) x 0.2745(V) |
| Aspect Ratio | 16 : 9 |
| Viewing Angle | 178° / 178° |
| Response Time | 5ms |
| Brightness | 250 Nit |
| Contrast Ratio | 3000 : 1 |
| Color | 16.7 Million |
| Backlight Unit | LED Direct |
| INTERFACE | |
| RJ45 | 1x PoE & Network Port |
| HDMI 2.0 Output | 1 |
| USB2.0 | 2 |
| Audio In | 1x 3.5mm Earphone |
| SIM Card | 1x micro SIM Card x1(need pre-install 4G module) |
| Card Slot | 1x micro SD, Support up to 32GB |
| Power Jack Audio In (R/L) | 1 |
| AUDIO | |
| Speaker | 2x built-in speaker (2 Watt) |
| SYSTEM | |
| CPU | RK3566, Quad core ARM Cortex A55@2.0G |
| GPU | OpenGL ES1.1/ 2.0/ 3.0/ 3.1/ 3.2, Vulkan 1.1, OpenCL 2.0 |
| RAM / Flash | 4GB / 32GB |
| Video Format | 4K x 2K H.264 / H.265 (10-bit) |
| Audio Format | MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ALAC, APE, ACC, M4A, RM |
| Image Format | JPG, JPEG, BMP, GIF, PNG |
| Operation System | Android 11 |
| FEATURE | |
| RTSP Streaming | Yes |
| Onvif | Yes / Onvif Profile S |
| Multi Languages | Yes |
| NETWORK | |
| Wired Lan | RJ45 connection (support 10/100 Ethernet) |
| CABINET | |
| CABINET | Metal |
| POWER | |
| POE Input DC Range | 36VDC to 57VDC (Complies with IEEE802.3at IEEE802.3at/4-Pairs) |
| Power Consumption | Approx. 27W |
| POE Power Required | IEEE 802.3bt Type 3 (POE++ 60W) |
| TEMPERATURE | |
| Operating | 32° F ~ 122° F (0° C ~ 50° C) |
| Storage | -4° F ~ 140° F (-20° C ~ 60° C) |
| Humidity | 10 ~ 85% |
| DIMENSIONS (WxHxD) | |
| Inch (in) | 22.67 x 13.69 x 2.53 |
| Millimeter (mm) | 575.9 x 347.8 x 64.5 |
| WEIGHT | |
| Unit Weight | 12.56 Lbs (5.7 Kg) |
| VESA™ | |
| Mount Size (mm) | 100 x 100 |
| PACKAGE CONTENTS | |
| Accessories | USB Mouse x1 |

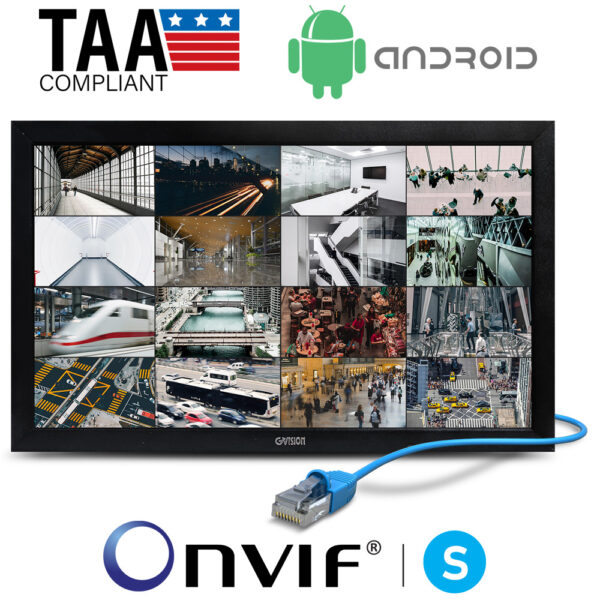

24″ IP Monitor PoE Power and Data Android OS
GVisions’ IP Series monitors are POE Power and Data devices with embedded Android OS which is a powerful tool that enables viewing of live or recorded video feeds from network-enabled surveillance cameras.
- 24-Inch Size / 1920×1080 FHD Resolution
- Support PoE Power and Data
- Embedded Android 11 OS
- RK3566, Quad Core ARM Cortex A55 CPU
- H.264, H.265 Compression Format
- RTSP Streaming Compatible
- Interface: HDMI/ RJ45/ Audio/ Micro SD/ USB2.0 Ports
- ONVIF Profile S
- TAA Compliance / 3-Year Warranty
product description
GVisions IP monitors are POE Power and Data devices with built-in Android 11 operating system which is a powerful tool that enables viewing of live or recorded video feeds from network-enabled surveillance cameras. This device is ONVIF Compliance and operates through the Real-Time Streaming Protocol for seamless functionality. The 24″ IP monitor also supports maximum 16CH network cameras via HUB or Switch.
download

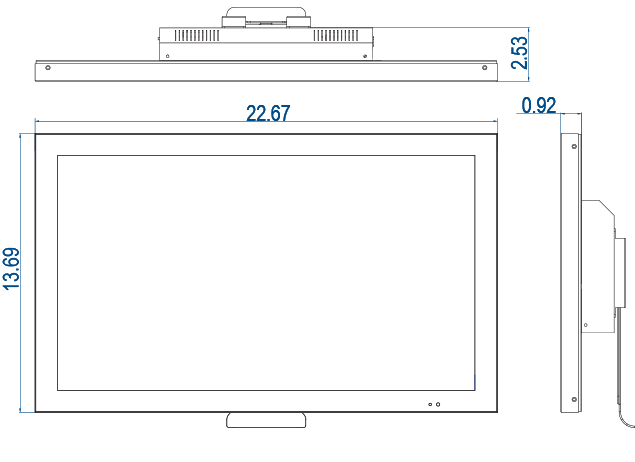

product dimension
