19_pcap_front
22_pcap_back22_pcap_side

D17 – 17″ Projected Capacitive Touch Screen Monitor

Part Number: D17ZH-AB-K5P0
Category: Desktop/POS Touch Screen Monitors

Features

  • 17″ TFT LED Screen
  • 10-touch multi-touch
  • HD resolution
  • Projected capacitive touch screen
Screen Size 17"
Aspect Ratio 4:3

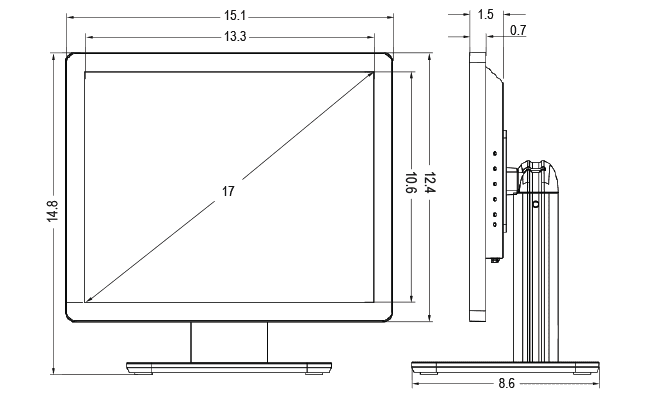

Dimensions (L x W x H, mm) 398×220×331
Active Display Area (mm) 337.9(H)×270.3 (V)
Color Depth 16.7M
Resolution 1280 x 1024
Pixel Pitch 0.264(H)×0.264(V)
Response Time 5ms
Brightness (cd/m2) 250
Contrast Ratio (typ) 1000:1
Viewing Angle (typ) 170°(H)/160°(V)

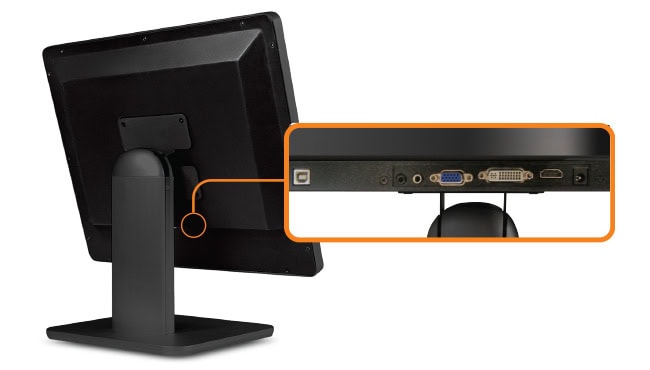

Display Interface VGA (DVI, HDMI optional)
Touch Interface USB (RS-232 optional)
Power Supply Input voltage DC:12V±5%; External:power adapter
Power Consumption 18W
Temperature Operating:0°C ~ 40°C ; Storage: -20°C ~ 60°C
Humidity Operating:20% ~ 80%; Storage: 10% ~ 90%
Certifications CE, FCC, CCC

Data Sheet: D Series Data Sheet

17″ projected capacitive touch screen monitor with zero bezel touch screen and 10-point multi-touch.
