S16N – 16.3″ Smart Shelf Display w/ Built-In Android System

Part Number: S16N-X18K-7WN
Category: Smart Shelf Display
The 16.3″ Smart Shelf display is a new innovative device that advertise and deliver product information to consumers. Smart Shelf display information on product nutrition facts, pricing, or current promotional events etc.
  • 16.3″ Screen Size
  • 1366 x 200 Screen Resolution
  • All-In-One Display with Built-In Android OS
  • Wi-Fi Networking / Ready to Upload Contents
  • Display Product Detail / Advertisement at Point of Purchase (POP)
  • Barcode Scanner Available
  • Display Portrait and Landscape
MODEL
Part Number S16N-X18K-7WN
DISPLAY
Screen Size 16.3"
Resolution 1366 x 200
Backlight Unit LED
Aspect Ratio 13 : 2
Viewing Angle 170° / 160°
Active Area 410 x 63mm
Brightness 300 Nit
AUDIO
Speaker 18.9KHz Audio Out by PIN Connector
INTERFACE
USB-A Type 1
USB-C Type (Micro) 1
Audio Output 1
HARDWARE
Android OS Android 6.0 OS
CPU Allwinner V40 Cortex-A7 Quad Core 1Ghz
GPU ARM Mali400 Mp2 Complies w/ OpenGL ES2.0/1.1
RAM 1GB (256 MB x 4) DDR3
Memory Size 8G EMMC Flash
Network WiFi
WiFi 2.4GHz, 5GHz (802.11b/g/n)
RTC Function Yes
POWER
Input Voltage 12V DC / 5A
TEMPERATURE
Operating 32° F ~ 104° F (0° C ~ 40° C)
DIMENSIONS (WxHxD)
Inch (in) 17.3 x 3.1 x 0.8
Millimeter (mm) 440 x 80 x 22
OPTIONAL
Barcode Sensor Option
product description
The Smart Shelf Display is a promotional video solution that can display information of merchandise for general distribution industry. GVision’s Smart Shelf Display differs from traditional price tags because it provides an interactive solution that can carry out final marketing through video, sound, and POS interlockings.
Smart Shelf Features



download data sheet



where to use
Where to use Smart Shelf



system configuration

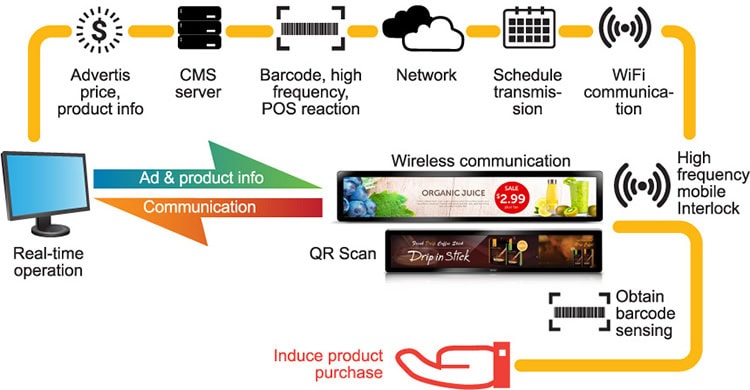

Smart Shelf System Configuration
