TC8D – Temperature Screening Tablet System

Part Number: TC8D-Z16L-73P
Category: Thermal Imaging Display

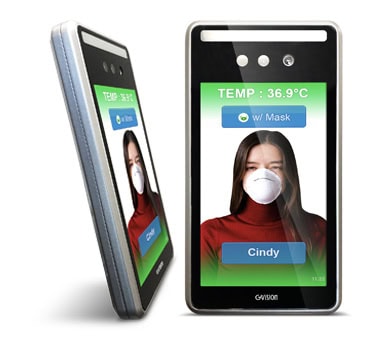

The TC8D thermal tablet facial recognition and body temperature abnormity detection device is capable of detecting temperature abnormity without actual physical contact at different applicable scenes, alerting of people with abnormal body temperatures, facial identity recognition capability with or without mask. It obtains and analyzes relevant data from open sources and is in turn able to trace it back to its origin and well facilitates the management in making better decisions based on scientific evidence. Ensures safety and significantly improves efficiency.
  • Enables live body recognition
  • Enables body temperature detection
  • Patent owned facial recognition algorithm
  • Enables recognition of facial identity wearing the mask
  • Alerts if people are not wearing a mask
  • Built in high performance NPU
  • Linux operating system, high reliability
MODEL
Part Number TC8D-Z16L-73P
DETECTION PARAMETERS
Operating Temp. 15°C ~ 35°C (In door)
Temp. Detecting Range 30°C ~ 45°C
Accuracy 0.1°C
Error Range ±0.3°C
Detecting Distance 35 ~ 50cm / Horizontally
Abnormal Warning Exceed 37.3°C body temperature
Precautions 20 ~ 30 mins device warm up is recommended
FACIAL RECOGNITION
Detecting Range 0.8 ~ 2.2m, adjustable angle (Vertical)
Face Angle Horizontally 30° / Vertically 30°
Response Time <0.5 seconds
Storage Capacity 50,000 (max 160,000) capture record
Facial Image Rec. Capacity 24,000 pieces
Face Recognition Accuracy >99.25%
CAMERA PARAMETERS
Camera Binocular, Visible & near infrared / live body detection
Effective Mega Pixels 210, (1920 x 1080)
Minimum Illumination Multicolor 0.01 Lux / Black and white 0.001 Lux
Signal to Noise Ratio ≥50db (AGC OFF)
Wide Dynamic 120db, ISP algorithm face partial exposure
Remote Device Upgrade Support
INTERFACE
Digital Output 1 x digital output
Network Interface 1 x RJ45 10M/100M adaptive Ethernet port
USB Interface 1 x USB
WG 1 x WG in, 1 x WG out
SYSTEM
Processor Dual-core processor / 1G RAM / 16G (max 64G) Flash
OS Linux
Image Sensor 1/2.8" Progressive Scan CMOS
Speaker Standard, or play prerecord content
Operating Humidity 0~90% RH
Antistatic Contact ±6KV, Air ±8KV
Power Requirement DC12V / 3A
Power Consumption 20W (MAX)
Dimension (L x W x H) 9.9” x 5.3” x 1.0” / 252mm x 136mm x 26mm
Screen Size 8 inch
Column Aperture 36mm
Weight 3.7 Lbs (1.7Kg)
product description
The TC8D thermal tablet facial recognition and body temperature abnormity detection device is capable of detecting temperature abnormity without actual physical contact at different applicable scenes, alerting of people with abnormal body temperatures, facial identity recognition capability with or without mask. It obtains and analyzes relevant data from open sources and is in turn able to trace it back to its origin and well facilitates the management in making better decisions based on scientific evidence. Ensures safety and significantly improves efficiency.



download data sheet



features
8-Inch High Resolution, Built-In Temp Detect Module, Wide Application
system features
  • Enables live body recognition
  • Patent owned facial recognition algorithm, able to recognize faces with high accuracy, response time 0.5s
  • Enables body temperature detection
  • Enables recognition of facial identity wearing the mask
  • Enables mask detection, alerts if people are not wearing a mask
  • Built in high performance NPU
  • Linux operating system, high reliability
  • Storage of up to 24,000 facial images
  • Captures records Multiple interfaces: WG26, WG34, RJ45
8-Inch High Resolution, Built-In Temp Detect Module, Wide Application

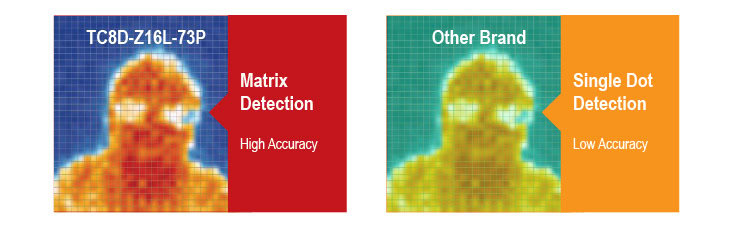

matrix detection
Infrared Matrix Analysis Algorithm – Precise Measurement of Forehead Temperature.
Infrared Matrix Analysis Algorithm



mask recognition
Mask Recognition Algorithm
Mask Recognition Algorithm
Accumulated 500,000 sets of masked face samples, Algorithm guarantees the accuracy rate of masked face recognition can reach 99%. Various types of built-in mask recognition algorithms

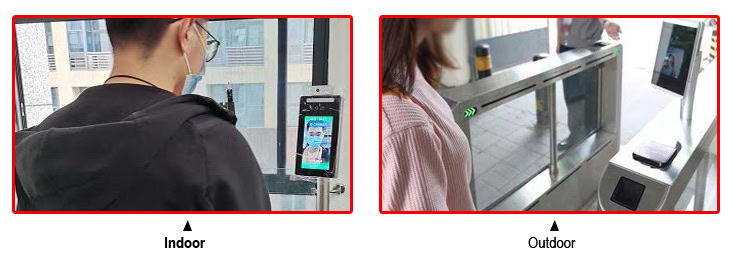

environment use
High accuracy temperature detection chip with ISP image process technology. Can adapt to various environmental lights. Facial temperature detection range 30°C~45°C. Variation within +0.3°C. (Accuracy may vary with different distance)
High accuracy temperature detection chip with ISP image process technology
