TC8D – Temperature Screening KIOSK Built-In Android OS

Part Number: TC8D-R28J-730
Category: Thermal Imaging Display
The TC8D temperature screening KIOSK with built-in Android OS perform facial recognition and body temperature abnormity detection device is built-in Android and capable of detecting temperature abnormity without actual physical contact at different applicable scenes, alerting of people with abnormal body temperatures, facial identity recognition.
  • Enables live body recognition
  • Enables body temperature detection
  • German temperature measurement module, accuracy with temperature difference +/- 0.5 degrees
  • Enables recognition of facial identity wearing the mask (option)
  • Built-in ANDROID Operating System
  • Employee Attendance: employee’s entry and exit time
  • Personnel ID: Combine face camera to identify the identifiable and strangers, and trigger to push messages
  • Visitor Control: After registering the visitor’s device, he or she may check in and out via face ID and the record
MODEL
Part Number TC8D-R28J-730
HARDWARE
CPU RK3288
OS Android 5.1
RAM 2G (1G / 4G Optional)
Storage 8G eMMC (16G / 32G / 64G / 128G Optional)
Imaging Device 1/2.7" CMOS
WiFi 2.4G
Bluetooth Optional
Lens 2.9mm
Exterior Aluminum alloy back shell
CAMERA PARAMETER
Camera Binocular camera
Min. Illumination 1Lux
Effective Pixels 1920 x 1080
Signal / Noise Ratio ≥41db
Wide Dynamic Range ≥105db
FACE PERFORMANCE
Facial recognition Height 1.2 ~ 2.2m, Angle Adjustable
Recognition Time <500ms
Facial recognition Distance 0.5 ~ 1.5m
Function 20,000 face comparison / 100,000 facial recognition
Angle of View 85° (Horizontal), 60° (Vertical), 90° (Diagnal)
Mask Recognition Optional
GENERAL
Power DC 12V/3A
Installation Wall mounted / Stand
Equipment Power 15W (MAX)
Working Humidity 5 ~ 90% relative humidity
Operating Temperature -15°C ~ 60°C
Weight 4.4 Lbs (2.0 Kg)
Dimensions (WxHxD) 4.9" x 9.0" x 0.9"
INTERFACE
Network RJ45 Ethernet port
Serial Port 1 x TTL
Wiegand Output Support
USB Port 2
TEMP. PERFORMANCE
Temp. Measurement Range 30°C~45°C
Temp. Measurement Distance ≥0.5 m
Temp. Measurement Accuracy ±0.5°C
Response Time <300ms
Temp. Display Alarm Display
product description
The TC8D temperature screening KIOSK has Android system capable of facial recognition and body temperature detection device is built-in Android and capable of detecting temperature abnormity without actual physical contact at different applicable scenes, alerting of people with abnormal body temperatures, facial identity recognition. It obtains and analyzes relevant data from open sources and is in turn able to trace it back to its origin and well facilitates the management in making better decisions based on scientific evidence. Ensures safety and significantly improves efficiency.



download data sheet



core technology
The facial recognition application possesses functions including access control, attendance, consumption, welcome visitors, and guest AI application. Using non-contact automatic body temperature detection to do facial recognition.
Core Technology

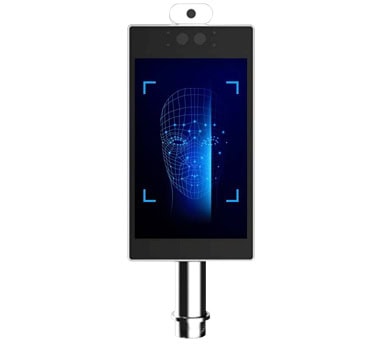

recognition accuracy
Recognition Accuracy
Multi-Face Comparison Technology
Facial recognition and search can be performed offline, no networking is required. It supports the database with 100,000 local face pictures at most. It takes approximate 500 milliseconds to search for a picture (CPU 2G) through recognition plus search from 100,000 face database.
Single Face Comparison Technology
Face comparison 1 to 1 can be performed offline. Compare the similarity of two people, which is mainly used for face unlock. Compare the faces on the two photos to determine whether they are the same person.



product dimension
TC8D Dimension
