O24AD – 24″ Open Frame Projected Capacitive Touch Monitor

Part Number: O24AD-OV-45P0
Category: Open Frame Touch Monitors
10% OFF
GVision 24-inch open frame projected capacitive touch monitor with rugged metal chassis and 10-points multi-touch is designed for commercial and industrial applications.
  • 24-Inch Screen Size
  • WUXGA 1920 x 1080 Full HD Resolution
  • Video Inputs: HDMI / VGA / DVI
  • 300 nits Brightness
  • Projected Capacitive (PCAP) 10-Points Touch
  • 178° /178° Wide View Angle
  • LED Backlight Unit Monitor
  • 3-Year Warranty
MODEL
Part Number O24AD-OV-45P0
DISPLAY
Screen Size 24"
Resolution 1920 x 1080
Backlight Unit LED
Aspect Ratio 16 : 9
Viewing Angle 178° / 178°
Brightness 300 nit
Color 16.7 Million
Contrast Ratio 3000 : 1
Response Time 12ms
INTERFACE
HDMI 1
DVI 1
VGA (15 Pin D-Sub) 1
USB Type-B 1
TOUCH TECHNOLOGY
Type Projected Capacitance (PCAP)
Points 10-Points
Support OS Window, Linux
CABINET
Material Metal
Color Black
POWER
Consumption < 37W
Electrical Ratings DC12V / 5A (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating -14° F ~ 122° F (-10° C ~ 50° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
Humidity 10 ~ 85%
DIMENSIONS (WxHxD)
Inch (in) 22.0 x 13.4 x 2.2
Millimeter (mm) 560.1 x 341.6 x 56.5
WEIGHT
Unit Weight 13.8 lbs (6.3 kg)
VESA™
Mount Size (mm) 100 x 100
product description
GVision 24-inch open frame projected capacitive touch monitor with rugged metal chassis and 10-points multi-touch is designed for commercial and industrial applications, such as kiosks, digital signage, military, security, industrial equipment, and instrumentation equipment. This product can provide high brightness/contrast to achieve a better viewing effect and good reliability in wide environments conditions.
24-inch Open Frame Touch Monitor Monitor



download data sheet

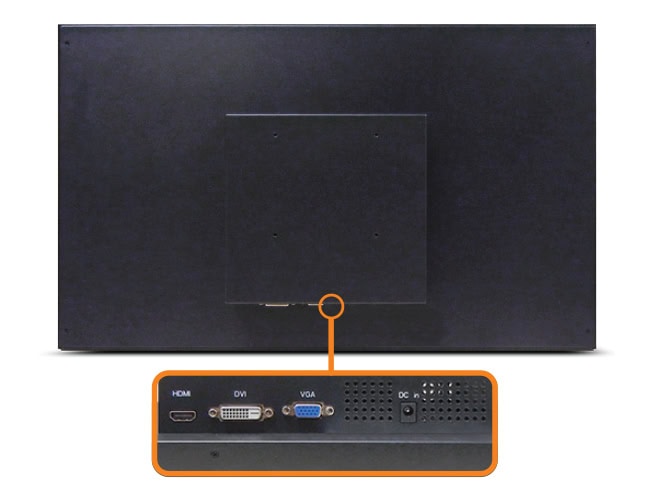

input interface
24-inch Open Frame Touch Monitor Input Source
Multi Inputs
O24AD touch monitor support VGA, HDMI, DVI input and USB-Type B to use touch function



product dimensions
24-inch Open Frame Touch Monitor Dimensions
