MA19BH – 19″ Medical Resistive Touch Screen Monitor

Part Number: MA19BH-AB-1690
Category: Medical Touch Screen Monitors
GVision’s MA19BH is a 19” resistive touch medical monitor designed specifically for use in the medical industry. It’s the perfect touch screen solution for healthcare applications such as nursing stations. UL60601 certified.
  • 19-Inch TFT Screen Size
  • 1280 x 1024 Max. Resolution
  • Supporting Inputs: DVI-D / VGA
  • 350 Nits High Brightness
  • 5-Wire Resistive Touch
  • LED Direct Backlight Unit
  • Integrated Stereo Speakers
  • Designed for 24 / 7 Operation
  • UL60601 Certified
  • 3-Year Warranty
MODEL
Part Number MA19BH-AB-1690
DISPLAY
Screen Size 19 In
Resolution 1280 x 1024
Backlight Unit LED
Aspect Ratio 5 : 4
Viewing Angle 170° / 160°
Response Time 5ms
Brightness 400cd/m²
Contrast Ratio 1000 : 1
Display Area 376.4 (H) x 301.1 (V)
Color 16.7 M
AUDIO
Speaker 1W Per Channel
INTERFACE
DVI 1
VGA (15-Pin) 1
USB Type-A 1
RS232 1
TOUCH TECHNOLOGY
Type Resistive
Panel 5-Wire / 1-Point Touch Resistive
Interface RS-232 or USB A Type
POWER
Consumption DC12V / 5A
Input Voltage AC 100V ~ 240V, 50/60Hz
TEMPERATURE
Operating 32° F ~ 104° F (0° C ~ 40° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
HUMIDITY
Operating 10% ~ 80%
DIMENSIONS (WxHxD)
Inch (in) 17.2 x 16.4 x 7
Millimeter (mm) 438.0 x 417.5 x 180.0
WEIGHT
Net Weight 17.6 lbs (8.0 kg)
REGULATION
Certification FCC, UL60601, RoHS / WEEE
VESA™
Mount Holes (mm) 100 x 100
product description
GVision’s MA17BH is a 19″ resistive touch medical monitor designed specifically for use in the medical industry. It’s the perfect touch screen solution for healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self-check-in / registration or point–of-information. UL60601 certified.



download data sheet

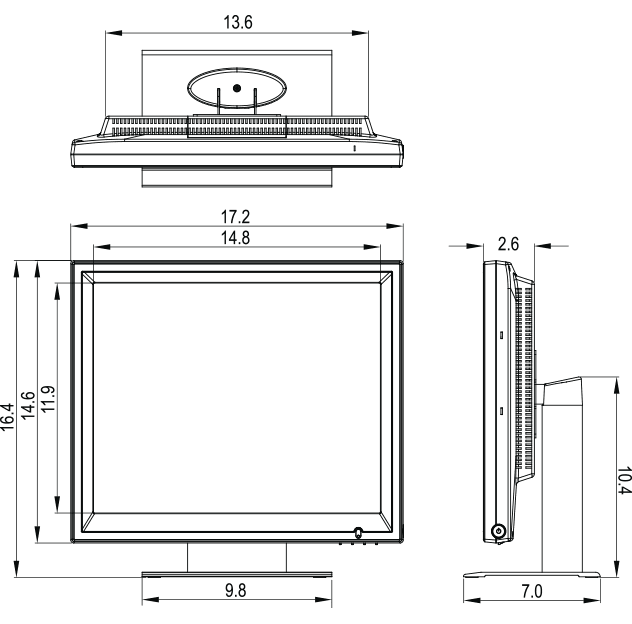

mechanical dimension
19-Inch Medical Touch Display Monitor



PN# Resolution Video Input Touch Screen Touch Interface Base
MA19BH-AB-1290G SXGA 1280 x 1024 VGA + DVI ELO Controller Board Serial & USB Yes
