MA17BH – 17″ Medical Resistive Touch Screen Monitor

Part Number: MA17BH-AB-1690
Category: Medical Touch Screen Monitors
GVision’s MA17BH is a 17” resistive touch medical monitor designed specifically for use in the medical industry. It’s the perfect touch screen solution for healthcare applications such as nursing stations. UL60601 certified.
  • 17-Inch TFT Screen Size
  • 1280 x 1024 Max. Resolution
  • Supporting Inputs: DVI-D / VGA / S-Video / Composite
  • 300 Nits High Brightness
  • 5-Wire Resistive Touch
  • LED Direct Backlight Unit
  • Integrated Stereo Speakers
  • Designed for 24 / 7 Operation
  • UL60601 Certified
  • 3-Year Warranty
MODEL
Part Number MA17BH-AB-1690
DISPLAY
Screen Size 17 In
Resolution 1280 x 1024
Backlight Unit LED
Aspect Ratio 5 : 4
Viewing Angle 170° / 160°
Response Time 8ms
Brightness 350cd/m²
Contrast Ratio 1000 : 1
Display Area 337.9 (H) x 270.3 (V)
Color 16.7 M
AUDIO
Speaker 1W Per Channel
INTERFACE
DVI 1
VGA (15-Pin) 1
USB Type-A 1
RS232 1
TOUCH TECHNOLOGY
Type Resistive
Panel 5-Wire / 1-Point Touch Resistive
Interface RS-232 or USB A Type
POWER
Consumption DC12V / 5.25A
Input Voltage AC 100V ~ 240V, 50/60Hz
TEMPERATURE
Operating 32° F ~ 104° F (0° C ~ 40° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
HUMIDITY
Operating 10% ~ 80%
DIMENSIONS (WxHxD)
Inch (in) 15.4 x 15.1 x 7
Millimeter (mm) 392 x 381.5 x 180
WEIGHT
Net Weight 11.0 lbs (5.5 kg)
REGULATION
Certification FCC, UL60601, RoHS / WEEE
VESA™
Mount Holes (mm) 100 x 100
product description
GVision’s MA17BH is a 17″ resistive touch medical monitor designed specifically for use in the medical industry. It’s the perfect touch screen solution for healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self-check-in / registration or point–of-information.



download data sheet

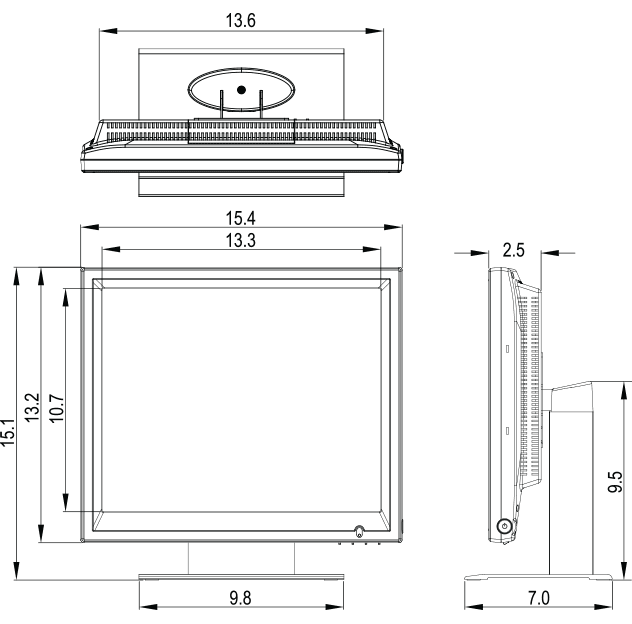

mechanical dimension
17-Inch Medical Touch Display Monitor
