I65ZI – 65″ PCAP Touch Built-In ANDROID 4K UHD Monitor

Part Number: I65ZI-OI-45P0D
Category: Large Format Touch Screen Monitors
This innovative design, comprised of Built-In ANDROID 4k UHD 65″ displays and above, are creating opportunities in digital signage, corporate webinars and infotainment.
  • 4K, 65 Inch, 3840 x 2160 Resolution
  • 40-Point Multi-Touch
  • LED Backlight Unit
  • Zero Pressure Touch Activation
  • Built-In ANDROID System
  • Water and Dust Resistant
  • Support HDMI, DisplayPort (DP), VGA, RJ45, RS232, USB, Audio, AV
  • Projected Capacitive Touch Screen (PCAP)
  • Landscape or Portrait Orientation Supported
MODEL
Part Number I65ZI-OI-45P0D
DISPLAY
Screen Size 65"
Resolution 3840 x 2160
Backlight Unit LED
Aspect Ratio 16 : 9
Contrast Ratio 4000 : 1
Viewing Angle 178° / 178°
Brightness 400 Nit
Response Time 9.5ms
Color 1,06 billion color
INTERFACE
HDMI In / Out 2 / 1
DP (UHD) In 1
VGA In 1
AV In / Out 1 / 1
RS232C In 1
RJ45 In / Out 1 / 1
Audio In / Out 1 / 1
USB In / Out 2 / 2
TOUCH TECHNOLOGY
Tempered Glass 4mm Anti Glare
Type Projected Capacitive (PCAP)
Points 40 Points (Dependant on OS / Browser / Software)
Accuracy 2mm
CABINET
Material Metal
ANDROID
System Version Android 5.0.1
CPU / GPU ARM Cortex A53 / Quad Core
RAM / ROM 1.5GB DDR3 / 8GB
POWER
Consumption < 220W
Input Voltage AC 100V ~ 240V, 50/60Hz
TEMPERATURE
Operating 32° F ~ 122° F (0° C ~ 50° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
HUMIDITY
Operating 20% ~ 80%
Storage 10% ~ 90%
DIMENSIONS (WxHxD)
Inch (in) 59.0 x 35.2 x 4.1
Millimeter (mm) 1499 x 895 x 104
WEIGHT
Net Weight 145 lbs (66 kg)
VESA™
Mount Holes (mm) 600 × 400
product description
Technological advances and price decreases have increased the market for large 4k touch screen displays substantially. These innovative designs with built-in ANDROID system, comprised of 4k 65” displays and above, are creating opportunities in digital signage, corporate webinars and infotainment. Feel free to inquire about our large touch screen LCDs or engage us with your latest solution project and let our engineers position you for something big.
I65ZI-OI-45P0D



download data sheet

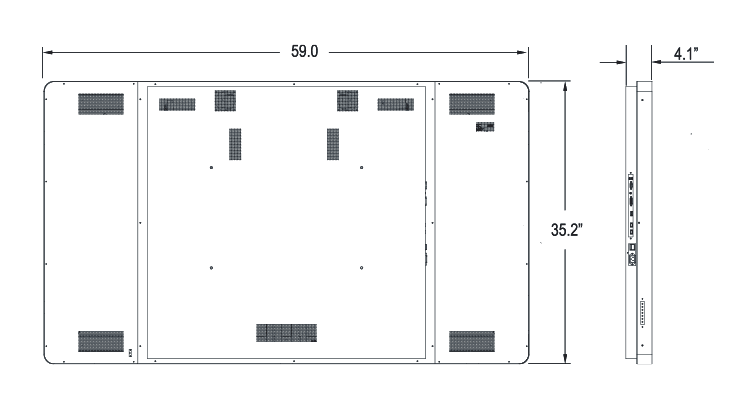

product dimension
I65ZI-OI-45P0D Dimension
