| MODEL | |
| Part Number | I55ZI-OI-45PTD |
| DISPLAY | |
| Screen Size | 55" |
| Resolution | 3840 x 2160 |
| Display Area (mm) | 1211.10(H) x 681.90(V) |
| Backlight Unit | LED |
| Aspect Ratio | 16 : 9 |
| Contrast Ratio | 5000 : 1 |
| Viewing Angle | 178° / 178° |
| Brightness | 400 Nit |
| Response Time | 6ms |
| Color | 1,06 billion color |
| OPS SLOT | |
| OPS Module Slot | Available |
| INTERFACE | |
| HDMI In / Out | 2 / 1 |
| DP (UHD) In | 1 |
| RS232 | 1 |
| RJ45 (LAN) In / Out | 1 / 1 |
| RS-232C In | 1 |
| USB 2.0 / USB 3.0 | 2 / 2 |
| Mic In / Audio Out | 1 / 1 |
| Type-C In / Coax Out | 1 / 1 |
| TOUCH TECHNOLOGY | |
| Tempered Glass | Anti Glare 4mm |
| Type | Projected Capacitive (PCAP) |
| Points | 20-Point (Android), 40-Point (Windows 10 and Above) |
| Accuracy | 2mm |
| Touch Response Time | 10ms (typ) |
| Surface Durability | Mohs' 7H |
| Touch Activation Force | 10g |
| Light Transmission | 86% |
| Interface | USB |
| System OS | |
| System Version | Android 11 |
| CPU | Dual-core A73 and Dual-core A53 1.5GHz |
| RAM | 8GB DDR3 |
| Flash | 64GB |
| WiFi | Wi-Fi 2.4G & 5G / 802.11ax, WiFi 6 |
| SPECIAL FEATURES | |
| Features | Built-in Digital Whiteboard |
| Wireless laptop control | |
| Auto signal / touch switching | |
| Cross platform annotation function | |
| Handwriting & Object Recognition | |
| Smart Port USB sharing function | |
| Simple LAN sharing between touch screen and slot-in device | |
| 9-way split screen mirror | |
| Wi-Fi Hotspot sharing function | |
| AUDIO | |
| Speaker | 2 x 20W 2.1 Deep Bass Speaker Optional |
| CABINET | |
| Color / Material | Black / Metal |
| POWER | |
| Consumption | 120W |
| Input Voltage | AC100V ~ 240V, 50/60Hz |
| TEMPERATURE | |
| Operating | 32° F ~ 104° F (0° C ~ 40° C) |
| Storage | -4° F ~ 104° F (-20° C ~ 40° C) |
| HUMIDITY | |
| Operating | 20% ~ 80% |
| Storage | 10% ~ 90% |
| DIMENSIONS (WxHxD) | |
| Inch (in) | 50.69 x 29.85 x 2.38 |
| Millimeter (mm) | 1287.69 x 758.49 x 60.50 |
| WEIGHT | |
| Net Weight | 84.43 lbs (38.3 kg) |
| VESA™ | |
| Mount Holes (mm) | 400 × 400 |
I55ZI – 55″ 4K PCAP Touchscreen Built-In Android OS
GVision’s 55-inch touch monitor with built-in Android and available OPS slot for Windows OS (optional) is specially designed for where PCAP 20-point (Android) and up to 40-point (Windows) are required.
- 55 Inch, 4K UHD 3840 x 2160 Resolution
- 40-Point (Windows) PCAP Multi-Touch
- Built-In OPS Computer Slot
- Built-In ANDROID OS System
- Zero Pressure Touch Activation
- Interface: HDMI, DP, RJ45 In / Outputs, RS232
- Landscape or Portrait Orientation Supported
product description
These innovative designs, comprised of 55” displays and above, are creating opportunities in digital signage, corporate webinars, and infotainment. Feel free to inquire about our large touchscreen LCDs or engage us with your latest solution project and let our engineers position you for something big.
download data sheet
advantages

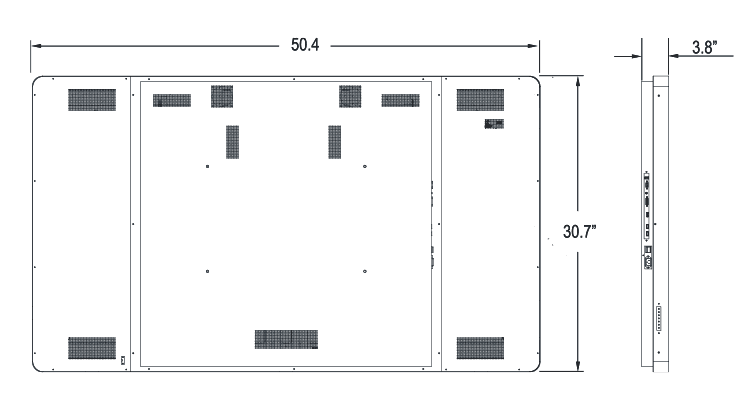

product dimension
