D15ZD-AV-45P0 – 15.6″ Wide Full HD Desktop Projected Capacitive PCAP Touchscreen

Part Number: D15ZD-AV-45P0
Category: Desktop Touch Monitors
GVision 15.6-inch wide Full HD desktop touchscreen monitor perform 10-points multi-touch of projected capacitive PCAP screen.
  • 15.6-Inch Wide Screen Size
  • 1920 x 1080 Full HD Resolution
  • Video Inputs: HDMI / VGA / DVI
  • 220 nits Brightness
  • Projected Capacitive (PCAP) 10-Points Touch
  • Zero Pressure Touch Activation
  • IP65 on the Front (Option)
  • LED Backlight Unit Monitor
  • 3-Year Warranty
MODEL
Part Number D15ZD-AV-45P0
DISPLAY
Screen Size 15.6 In
Resolution 1920 x 1080
Backlight Unit LED
Aspect Ratio 16 : 9
Viewing Angle 170° / 170°
Response Time 30ms
Brightness 220cd/m²
Contrast Ratio 800 : 1
Display Area 344.16 (H) x 193.59 (V)
Color 262K (6 bits)
AUDIO
Speaker Option
INTERFACE
HDMI 1
DVI 1
VGA (15-Pin) 1
USB Type-B 1
TOUCH TECHNOLOGY
Type Projected Capacitive PCAP
Panel 10-Point PCAP
Interface USB Type-B
POWER
Consumption 12W
Input Voltage 12V DC/5% (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating 32° F ~ 104° F (0° C ~ 40° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
HUMIDITY
Operating 10% ~ 80%
DIMENSIONS (WxHxD)
Inch (in) 15.2 x 13.5 x 8.6
Millimeter (mm) 388.2 x 344.6 x 220.0
WEIGHT
Net Weight 12.1 lbs (5.5kg)
REGULATION
Certification CE / FCC
VESA™
Mount Holes (mm) 100 x 100
product description
GVision desktop touchscreen monitor of D15ZD is the point of sale (POS) touch monitor which display 15.6-inch Full HD Wide desktop touchscreen of 10-points multi touch technology of projected capacitive PCAP screen.
15.6-inch Wide Desktop Touchscreen Monitor



download data sheet

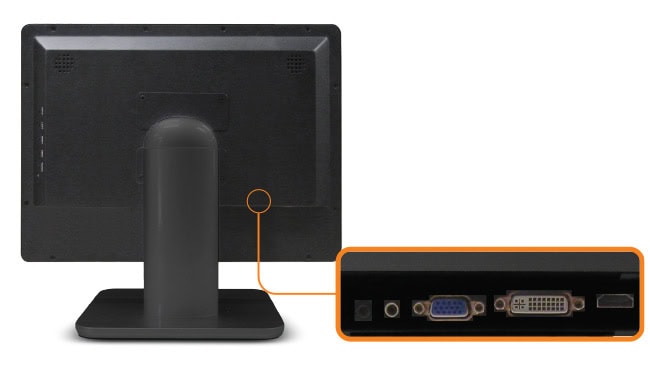

input interface
15.6-inch Wide Desktop Touchscreen Input Source
Multi Inputs
D15ZD 15.6 wide desktop touchscreen monitor support HDMI, VGA, DVI input and USB-Type B to use for the touch function



product dimensions
15.6-inch Wide Desktop Touchscreen Dimensions
