C27BD – 27″ 1080p Full HD Security CCTV Monitor

Part Number: C27BD-AU-4000
Category: Security CCTV Monitors

GVision’s 27″ 1080p Full HD CCTV security monitor is designed for 24 / 7 operating. It support HDMI, VGA, BNC CVBS and BNC AHD/TFI/CVI looping inputs. C27BD security CCTV monitor is featured Anti-Pixel burn technology and superior quality V56 chipset.
  • 27-Inch Screen Size
  • 1920 x 1080 Full HD Resolution
  • Video Inputs: HDMI / VGA / BNC CVBS
  • BNC AHD / TFI / CVI Looping Inputs
  • Supports Up To 5MP AHD, 4MP TVI / 3MP CVI Input
  • Anti-Pixel Burn Technology
  • 178° /178° Wide View Angle
  • Built to operate 24/7 Commercial CCTV Monitor
  • 3-Year Warranty
MODEL
Part Number C27BD-AU-4000
DISPLAY
Screen Size 27"
Resolution 1920 x 1080
Backlight Unit LED
Aspect Ratio 16 : 9
Viewing Angle 178° / 178°
Brightness 250 Nit
Color 16.7 Million
Contrast Ratio 1000 : 1
Response Time 5ms
INTERFACE
BNC In 4in1x1 (HD-TVI/HD-CVI/AHD 2.0)
BNC Out 4in1x1 (HD-TVI/HD-CVI/AHD 2.0)
CVBS BNC In 1
CVBS BNC Out 1
HDMI In 1
VGA In 1
PC Audio In / Out 1 / 1
USB (Firmware) 1
AUDIO
Speakers 3W x 2
FEATURES
Filter 2D / 3D combo
System PAL / NTSC / SECAM
Anti-Picture Burn-in Yes
Remote Control Yes
CABINET
Color Black
POWER
Consumption < 32W
Electrical Ratings 12V DC / 3A (AC 100V ~ 240V, 50/60Hz)
TEMPERATURE
Operating -22° F ~ 158° F (-30° C ~ 70° C)
Storage -4° F ~ 122° F (-20° C ~ 50° C)
Humidity 10 ~ 85%
DIMENSIONS (WxHxD)
Inch (in) 24.57 x 18.20 x 7.60
Millimeter (mm) 624.1 x 462.5 x 193.1
WEIGHT
Unit Weight TBD
VESA™
Mount Size (mm) 100 x 100
product description
GVision’s 27-inch C27BD CCTV security monitors are design for 24 / 7 / 365 operating. It support HDMI, VGA, BNC CVBS and BNC AHD/TFI/CVI looping inputs. C27BD security CCTV monitor is featured Anti-Pixel burn technology and superior quality V56 chipset.

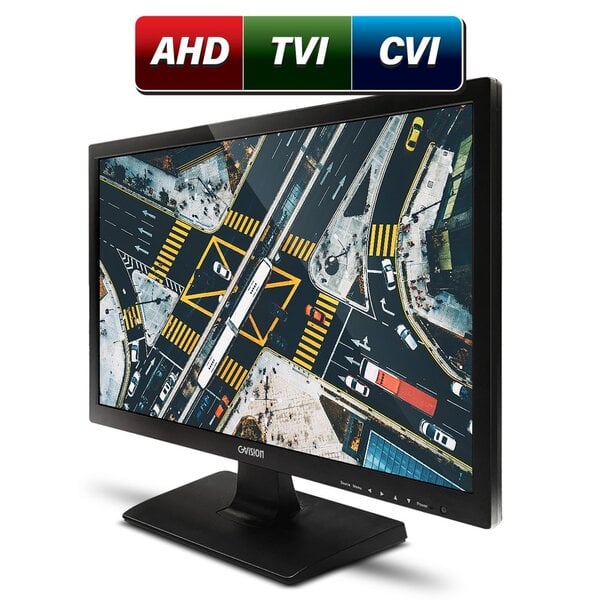

27-inch Full HD 1080p Security CCTV Monitor



download data sheet

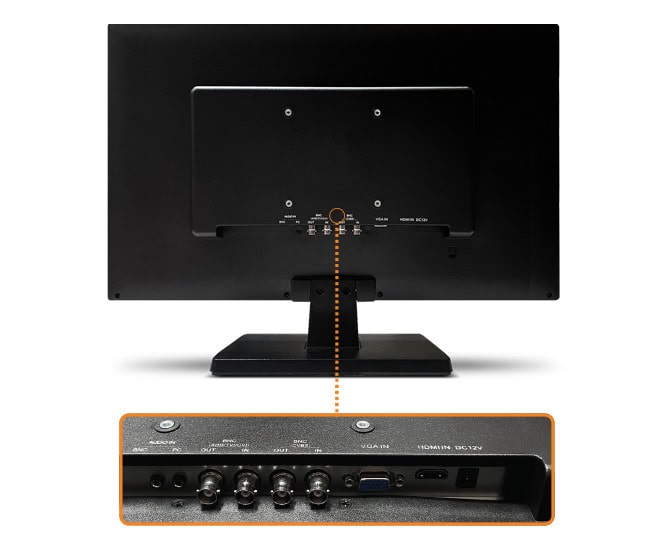

input interface
27-inch Full HD 1080p Security CCTV Monitor Multi Inputs
Multi Inputs
It support HDMI, VGA, BNC CVBS and BNC AHD/TFI/CVI looping inputs. Supports Up To 5MP AHD, 4MP TVI / 3MP CVI input



product dimensions
27-inch Full HD 1080p Security CCTV Monitor Dimensions
