VW55CD – 3.5mm Super Slim Bezel Video Wall Monitor

Part Number: VW55CD-OD-40003
Category: Video Wall Monitors
55″ 3.5mm super slim bezel provides a complete video wall systems that’s ideal for command & control centers, offices, shopping malls, stadiums, concert halls, and public transportation.
  • 55 Inch, 1920 x 1080 Full HD Resolution
  • 3.5mm Super Slim Bezel
  • LED Backlight Unit
  • Built-In Video Processor for Daisy Chain
  • Display 4K Content Over 2 x 2 Video Wall
  • Configurable Up To 10 x 10 Screens
  • Support HDMI, Display Port, and RS232C Input Interface
  • Design for 24 / 7 / 365 Operation
  • Scissor, Swing Door, Floor Stand, Custom Design Mount
Part Number VW55CD-OD-40003
Screen Size 55"
Resolution 1920 x 1080
Bezel to Bezel Width 3.5mm (2.25mm L/T, 1.25mm R/B)
Backlight Unit LED
Aspect Ratio 16 : 9
Contrast Ratio 1400 : 1
Viewing Angle 178° / 178°
Brightness 500 Nit
LCD Technology Commercial Grade IPS
Color 1,06 billion color
HDMI In / Out 1 / 1
Display Port In 1
RS-232C In / Out 1 / 1
Max. Daisy Chain 10 x 10
Built-In Processor Yes
Auto Pixel Shift Yes
White Balance Yes
Cooling Passive
Temperature Sensor Yes
Material Metal
Consumption < 280W
Electrical Ratings AC 100V ~ 240V, 50/60Hz
Operating 32° F ~ 122° F (0° C ~ 50° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
Operating 20% ~ 80%
Storage 10% ~ 90%
Inch (in) 47.8 x 26.9 x 4.0
Millimeter (mm) 1214.12 x 683.26 x 101.6
Net Weight 77.2 lbs (35kg)
Mount Holes (mm) 600 x 400
Custom Mount VW-S (Scissor), VW-SD (Swing Door), VW-FS (Floor Stand), VW-C (Custom Design)
product description
GVision’s 55″ 1080p Full HD video wall monitors feature the 3.5mm super slim bezels in the industry, which are designed for 24/7/365 operation. Combined with our standard or custom mounting system and our PC based video controller, GVision provides a complete video wall systems that’s ideal for command & control centers, offices, shopping malls, stadiums, concert halls, and public transportation.


download data sheet


Factory tune to manage brightness and color uniformity conveniently with Color Calibration Suite software probe sensor hardware
Video Wall Color Calibration
GVision’s video wall monitors utilizing the built-in image processor, 4K content can be displayed across 4 monitors by daisy-chaining the HDMI inputs / outputs. The number of pixels distributed across the 4 HD monitors is equal to the number of pixels in 1 UHD monitor.
Video Wall Display 4K Contents
3.5mm Super Slim Bezel
Super Slim (3.5mm) bezel construction makes this public transportation. display system attractive for close range viewing on indoor installations. Available 1.2mm Ultra Thin bezel upon customer request.

Video Wall Auto Power OFF to Prevent Fire
The causes of heat and high temperature such as internal environment, long time use, and multiple connections of various units, Anti Fire system prevents increase of temperature for user’s safety. Warning message and automatic power off at certain temperature.


interface and OSD
Video Wall Monitor Interface



product dimension
VW55CD-OD-40003 Dimension

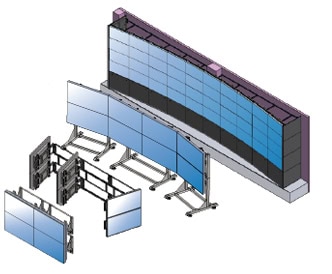

video wall mount
Video Wall Mount Solution
Video wall mounting options include standard wall mounts, scissor mounts, swing door mounts, floor stands and pedestal mounts. In addition, GVision can provide custom mounting, designed to fit your exact specifications.
