| MODEL | |
| Part Number | S37AE-OV-400G |
| DISPLAY | |
| Screen Size | 37" |
| Resolution | 1920 x 540 |
| Backlight Unit | LED |
| Aspect Ratio | 32 : 9 |
| Contrast Ratio | 4000 : 1 |
| Display Area (mm) | 904.3 x 254.3 |
| Brightness | 1000 Nit |
| Response Time | 6.5ms |
| Color | 16.7 M |
| AUDIO | |
| Speaker | Option |
| INTERFACE | |
| HDMI | 1 |
| DVI | 1 |
| VGS | 1 |
| RS232 | 1 |
| USB | 1 |
| POWER | |
| Consumption | < 65W |
| Input Voltage | 12VDC +/- 5% / AC 100V ~ 240V, 50/60Hz |
| TEMPERATURE | |
| Operating | 32° F ~ 104° F (0° C ~ 40° C) |
| Storage | 14° F ~ 140° F (-10° C ~ 60° C) |
| HUMIDITY | |
| Operating | 20% ~ 80% |
| Storage | 10% ~ 90% |
| DIMENSIONS (WxHxD) | |
| Inch (in) | 36.5 x 11.1 x 2.2 |
| Millimeter (mm) | 927.7 x 281.5 x 55.8 |
| WEIGHT | |
| Net Weight | 17.4 lbs (7.9 kg) |
| VESA™ | |
| Mount Holes (mm) | 100 x 100 , 100 x 200 |

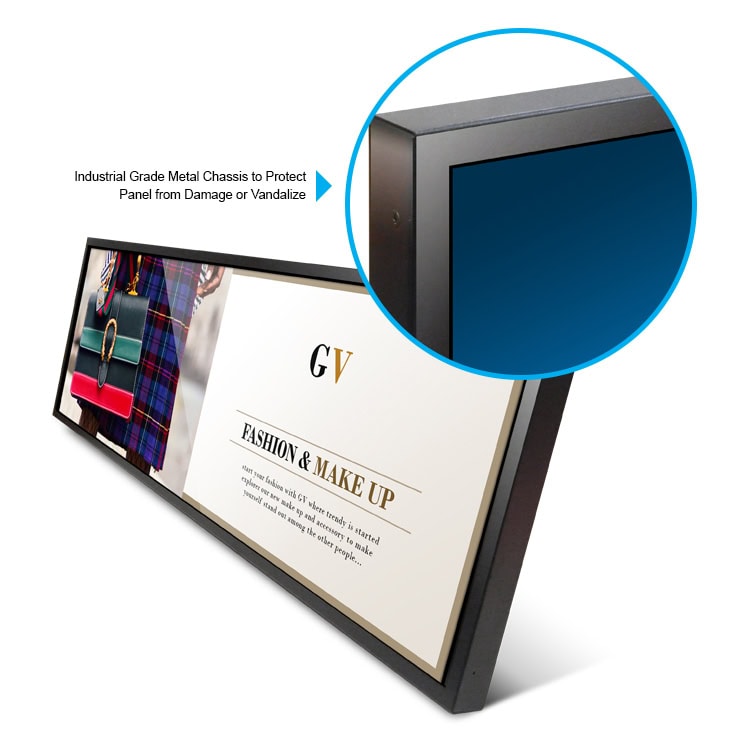

S37AE – 37″ Digital Signage Super Wide Stretched LCD Monitor
37″ digital signage super wide stretched LCD monitor is featuring unique 1920 x 540 resolution. Can be used either in portrait or landscape orientations.
- 37” Stretched Screen Size
- 1920 x 540 Unique Resolution
- Portrait and Landscape Supported
- 1000 Nits Brightness
- Ideal for Digital Signage Display
- Analog & Digital Inputs for Plug and Play
- Customized Touch Screen is Available
- 32 : 9 Aspect Ratio
product description
GVision’s 37″ digital signage commercial grade stretch wide display monitor is a unique signage monitor for customize usage. Our Super Wide monitor comes with 32 : 9 aspect ratio to display advertise or commercials for retail store such as mall, train station, subway, airport or restaurant.
download data sheet
Interface
Chassis
product dimensions
