I32ZI – 32″ 4K UHD PCAP Touchscreen Monitor

Part Number: I32ZI-OD-45P0
Category: Large Format Touch Monitors

This innovative design, comprised of 4k 32″ displays and above, are creating opportunities in digital signage, corporate webinars and infotainment.
  • 32 Inch, 4K UHD 3840 x 2160 Resolution
  • 10-Point Multi-Touch
  • LED Backlight Unit
  • Zero Pressure Touch Activation
  • Interface: HDMI, DVI, and DisplayPort (DP) Inputs
  • Projected Capacitive PCAP Touchscreen
  • Landscape or Portrait Orientation Supported
MODEL
Part Number I32ZI-OD-45P0
DISPLAY
Screen Size 32"
Resolution 3840 x 2160
Active Area (mm) 698.40 (H) x 392.85 (V)
Pixel Pitch (mm) 0.181 (H) x 0.181 (V)
Backlight Unit LED
Aspect Ratio 16 : 9
Contrast Ratio 3000 : 1
Viewing Angle 178° / 178°
Brightness 350 Nit
Response Time 9.5ms
Color 1.073G
OPS SLOT
OPS Module Slot N/A
INTERFACE
HDMI 1
DVI 1
Display Port 1
TOUCH TECHNOLOGY
Material (Glass) 3mm Strengthen Glass
Type Projected Capacitive (PCAP)
Points 10 MAX (Dependant on OS / Browser / Software)
Accuracy 2mm
Touch Response Time 10ms (typ)
Surface Durability Mohs' 7H
Touch Activation Force 10g
Light Transmission 86%
Interface USB (B-Type)
CABINET
Material Metal
POWER
Electrical Ratings 12V DC +/- 5%
Input Voltage AC 100V ~ 240V, 50/60Hz
TEMPERATURE
Operating 32° F ~ 104° F (0° C ~ 40° C)
Storage 14° F ~ 140° F (-10° C ~ 60° C)
HUMIDITY
Operating 20% ~ 80%
Storage 10% ~ 90%
DIMENSIONS (WxHxD)
Inch (in) 29.5 x 17.8 x 2.2
Millimeter (mm) 750.4 x 452.7 x 56.5
WEIGHT
Net Weight 30.8 lbs (14 kg)
VESA™
Mount Holes (mm) 200 x 200
product description
Technological advances and price decreases have increased the market for large 4k touchscreen displays substantially. These innovative designs, comprised of 4k 32” displays and above, are creating opportunities in digital signage, corporate webinars, and infotainment. Feel free to inquire about our large touchscreen LCDs or engage us with your latest solution project and let our engineers position you for something big.



download data sheet



interface

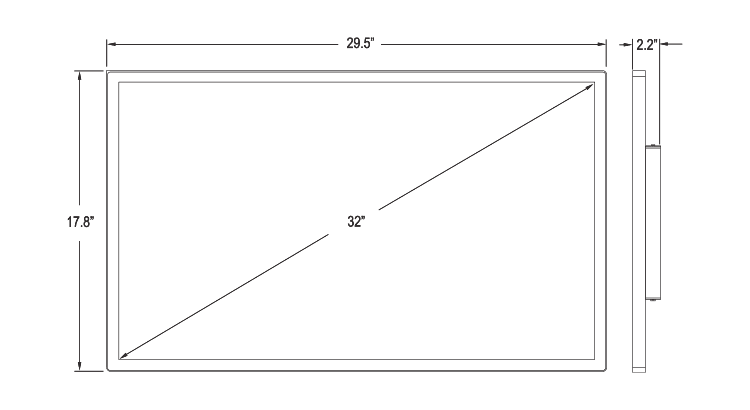

product dimension
